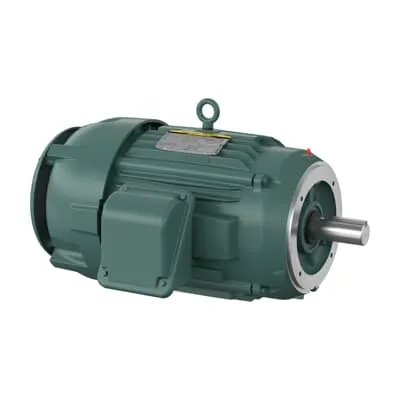

ABB VECP4100T Severe Duty Motor - NEMA Premium
Part Number: 7BVECP4100T
Quick Summary
VECP4100T is a severe-duty motor designed for heavy-duty industrial drives and continuous operation in demanding manufacturing environments. Engineers often struggle with reliability, maintenance downtime, and energy costs in high-load, 24/7 applications. This model carries NEMA Premium efficiency along with CSA EEV and UR certifications, and TEFC enclosure for tough environments. The product’s robust Baldor-Reliance build supports continuous-duty cycles in conveyors, pumps, mixers and other heavy loads where downtime is costly. Its footless base and C-face mounting simplify retrofits and minimize installation time across legacy equipment.
Product Information
Extended Description
7BVECP4100T ABB: Severe Duty Motor 15 Hp 230 V (VECP4100T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1175RPM,3PH,60HZ,284TC,1046M,T
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP4100T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
10LYH462: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
VECP4100T
Gross Volume
21796.25 in³
Gross Weight
475 lb
Horsepower Rating UL/CSA
15.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,1175RPM,3PH,60HZ,284TC,1046M,TEFC,F
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
Severe Duty, 15 HP, 1200 RPM, Frame Size 284Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VECP4100T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
284TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
73 %
Product Name
Severe Duty
Product Net Depth / Length
35 in
Product Net Height
23.5 in
Product Net Weight
475 lb
Product Net Width
26.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
42 A | 21 A
Rated Efficiency
91.70 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
15 HP, 1200 RPM, Frame Size 284Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: Premium efficiency (IE3) with 15 HP output. Business Impact: Reduces energy consumption and operating heat, extending drive life and lowering cooling requirements. Application: ideal for high-duty conveyors, pumps, and fans in continuous operation. Feature: TEFC enclosure and rugged 284TC frame. Business Impact: Protects windings from dust, moisture, and wash-downs while withstanding harsh environments. Application: mining, cement, metalworking lines, and food processing facilities. Feature: Dual voltage 230V/460V at 60 Hz. Business Impact: Installation flexibility and simplified stocking; compatibility with VFDs and standard starters. Application: plant-wide drives and legacy systems. Feature: C-Face mounting, 284TC footprint, 1.88 in shaft, footless base. Business Impact: Easier retrofits, reduced footprint, and simpler alignment during installation. Application: space-constrained conveyors and machinery upgrades. Feature: Certifications and compliance (NEMA Premium, CSA EEV, UR). Business Impact: Accelerates approvals and reduces regulatory risk for regulated facilities. Application: OEMs and end-users in safety-critical industrial environments. Feature: Service factor 1.15, 1175 rpm rated speed, 6-pole design. Business Impact: Torque reserve for startup surges and stable performance under load. Application: heavy-duty drives requiring reliable starting torque and consistent speed.
