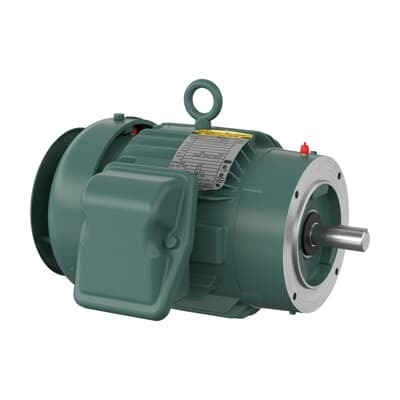

ABB VECP83583T-4 Severe Duty Motor - IEEE 841
Part Number: 7BVECP83583T-4
Quick Summary
ABB VECP83583T-4 Severe Duty Motor delivers reliable 1.5 HP performance for rugged, 3-phase equipment in harsh industrial environments. This motor is designed to minimize downtime and maintenance costs while delivering steady torque in continuous-service applications. With certifications and build features aligned to demanding facilities, it supports long-life operation in challenging conditions. The combination of IEEE 841 severe-duty heritage, NEMA premium efficiency, and a TEFC enclosure makes it well-suited for pumps, conveyors, and processing lines. In practice, you gain energy efficiency, consistent startup behavior, and easier compliance across global sites, helping procurement simplify spec-compliance while engineering maintains predictable performance across the plant floor.
Product Information
Extended Description
7BVECP83583T-4 ABB: Severe Duty Motor 1.50 Hp 460 V (VECP83583T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,3PH,60HZ,143TC,0524M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP83583T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
05LYF161: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VECP83583T-4
Gross Volume
5274.135 in³
Gross Weight
75 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
1.5HP,3450RPM,3PH,60HZ,143TC,0524M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 1.5 HP, 3600 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP83583T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
83 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
75 lb
Product Net Width
16.125 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
2 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B05F161W176
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 3600 RPM, Frame Size 143Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
460 V
Feature → Business Impact → Application: The IEEE 841 Severe Duty design delivers rugged reliability for continuous operation, reducing unplanned downtime in critical processes such as pumps and mixers. With 1.5 HP at 460 V and a 60 Hz 2-pole configuration, you achieve consistent torque and predictable start-up in demanding environments. This translates to measurable uptime gains and lower maintenance costs in process lines and material handling. Feature → Business Impact → Application: TEFC enclosure provides dust, splash, and environmental protection, enabling installation in dirty or wet factory floors without compromising motor life. This supports reliable operation in conveyors, fans, and pump assemblies across manufacturing lines. Feature → Business Impact → Application: IE3 Premium efficiency and NEMA standards alignment lower energy consumption by typical industry margins, delivering tangible energy savings in continuous-duty motors and reducing total cost of ownership for pumping stations and HVAC drives. Feature → Business Impact → Application: Regreasable bearings (6205) and robust 143TC frame size extend bearing life and simplify maintenance planning, decreasing downtime during scheduled maintenance windows for heavy-duty agitators and mixers. Feature → Business Impact → Application: C-Face mounting and footless base design streamline installation, enabling quick retrofits and straightforward alignment in retrofit projects and new builds, reducing commissioning time for packaging lines and material handling systems. Feature → Business Impact → Application: Stocked at multiple warehouses with Zero-Day lead time (0 day), improving procurement agility and uptime for critical equipment like belt conveyors and mixing tanks that must stay online. This combination of design choices and supply chain readiness minimizes risk in capital projects and plant-wide maintenance programs.
