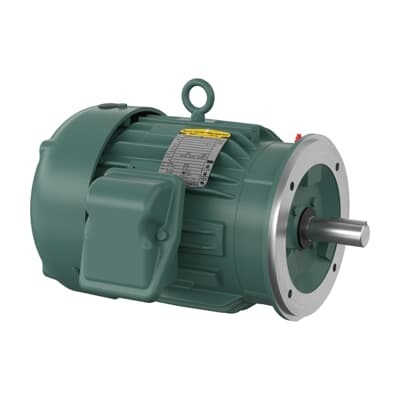

ABB 7BVECP83660T-4 Severe Duty Motor - IEEE 841
Part Number: 7BVECP83660T-4
Quick Summary
IEEE 841 Severe Duty motor delivers rugged power for continuous operation in harsh industrial environments like mining, chemical processing, and wastewater treatment. Operators struggle with downtime caused by heat, dust, moisture, and abrasive particulates, which shorten bearing life and increase maintenance costs; this model's TEFC enclosure, 6206 ball bearings, and regreasable lubrication address those challenges. With NEMA Premium IE3 efficiency and certifications from CSA, UR, and CCSA US, it meets stringent energy and safety standards while reducing operating costs. Stocked at multiple warehouses worldwide with fast lead times, it offers predictable procurement for reliability-focused maintenance teams and project managers.
Product Information
Extended Description
7BVECP83660T-4 ABB: Severe Duty Motor 3 Hp 460 V (VECP83660T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182TC,0632M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VECP83660T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYG105: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VECP83660T-4
Gross Volume
5274.135 inÂł
Gross Weight
121 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182TC,0632M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP83660T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
94 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
121 lb
Product Net Width
16.125 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
3.4 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
460 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design with TEFC enclosure and regreasable bearings yields rugged reliability in dusty, wet, or high-heat environments; the result is extended service life and reduced maintenance cycles for critical equipment like conveyors and pumps. Application: suitable for harsh mining, chemical processing, and water treatment workflows where downtime is costly. Feature → 3 HP, 460 V, 60 Hz, 3-phase core rating delivers strong starting torque and consistent speed control; the business impact is improved belt drive and pump performance with lower energy waste. Application: ideal for heavy-duty fans and material-handling systems in continuous operation contexts. Feature → 182TC frame, C-Face mounting, 1.13 in shaft, and TEFC protection simplify installation and alignment; the business impact is faster commissioning and fewer field modifications. Application: retrofit and new builds in machine rooms and outdoor installations. Feature → Regreasable 6206 bearings reduce maintenance frequency and extend lubrication intervals, which lowers total cost of ownership. Application: long-run conveyors and mixing processes in rugged plants. Feature → IE3 Premium efficiency and NEMA Premium certifications provide energy savings and regulatory compliance; the business impact is lower operating costs and easier audits. Application: regulated industries seeking reliability with efficiency endorsements. Feature → Direct-on-line starting capability and 0-day lead times from stocked warehouses support rapid deployment; the business impact is minimized downtime during startup and project ramp-ups. Application: urgent replacement scenarios and expansion projects across global facilities.
