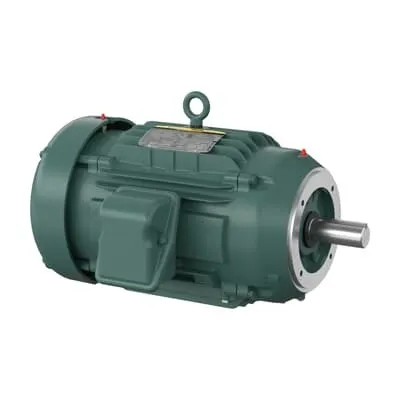

ABB VECP84106T-4 IEEE 841 Severe Duty Motor - NEMA Premium
Part Number: 7BVECP84106T-4
Quick Summary
IEEE 841 Severe Duty motor is designed to deliver rugged, reliable drive for demanding industrial applications such as conveyors, pumps, and material handling. Operators often struggle with unplanned downtime, high energy costs, and difficult maintenance windows; this motor addresses those challenges with robust construction, regreasable bearings, and proven NEMA Premium efficiency. It carries CSA US, CSA EEV, and UR certifications, reinforcing regulatory compliance across North American projects. Built for 460 V, 3-phase operation with TEFC enclosure, C-face mounting, and a 256TC frame, it installs quickly in tight spaces and harsh environments. These attributes translate into predictable performance, reduced maintenance, and lower total cost of ownership in continuous-duty operations.
Product Information
Extended Description
7BVECP84106T-4 ABB: Severe Duty Motor 20 Hp 460 V (VECP84106T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,256TC,0954M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VECP84106T-4
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYK208: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
VECP84106T-4
Gross Volume
15876 inÂł
Gross Weight
155.128 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,256TC,0954M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 20 HP, 3600 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (VECP84106T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
256TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31.5 in
Product Net Height
21 in
Product Net Weight
155.128 kg
Product Net Width
24 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
22 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256Tc, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design with robust bearings and regreasable lubrication. Business Impact: Extends bearing life and reduces maintenance intervals in harsh environments such as cement, mining, and chemical processing. Application: Suitable for high-vibration, dirty or dusty settings where reliability is critical. Feature: Premium Efficiency (90+% range, 91% rated efficiency) in a 3‑phase, 460 V TEFC design. Business Impact: Lowers energy consumption and operating costs for continuous-duty motors, improving total cost of ownership. Application: Ideal for conveyors, pumps, and processing lines with long run times. Feature: 256TC frame, 1.63 in shaft, and C-Face mounting with a footless base. Business Impact: Enables flexible installation in compact enclosures and simplifies coupling and alignment with existing equipment. Application: Retrofit projects and new builds where space is constrained. Feature: Direct On Line starting and 60 Hz operation. Business Impact: Quick, simple start-up with reliable performance, reducing startup wear and maintenance needs. Application: Plants prioritizing straightforward commissioning. Feature: Stocked At Warehouses (US, GB, SG, CN, DE) with 0 day lead times. Business Impact: Accelerates procurement, minimizes downtime, and improves project scheduling. Application: Just-in-time manufacturing environments and maintenance planning. Feature: 20 HP, 460 V, 3-phase, 256TC, TEFC, 3510 r/min rated speed, 3600 r/min synchronous speed, service factor 1.15. Business Impact: Delivers high torque at startup and steady operation with margin for overload, reducing risk of process disruption. Application: Heavy-duty drives in material handling and process control. This product’s combination of rugged IEEE 841 design, NEMA Premium efficiency, and flexible installation supports enterprise reliability initiatives while meeting industry standards and regulatory requirements.
Get a Quick Quote for a ABB 7BVECP84106T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVECP84106T-4?
Enquire Now
FAQs
The VECP84106T-4 uses a 256TC frame with C-Face mounting and a footless base, enabling flexible horizontal installation in compact spaces. It is designed for TEFC enclosure and 460 V, 60 Hz three‑phase systems, making it compatible with standard industrial drivetrains and coupling arrangements.
Key specs include 20 HP output, 3510 r/min rated speed, 3600 r/min synchronous speed, 460 V, 3-phase, service factor 1.15, and efficiency around 91%. The motor is designed for continuous duty with a TEFC enclosure and regreasable 6309 ball bearings.
Yes. It represents an IEEE 841 Severe Duty design with robust bearings and a long-life, regreasable lubrication system, ideal for demanding environments such as mining, cement, and chemical processing where uptime and reliability are critical.
The motor carries CSA US, CSA EEV, and UR certifications, with additional US-based approvals indicated by CCSA US. It aligns with NEMA Premium Efficiency standards, supporting energy compliance and regulatory acceptance in North American facilities.
The product is stocked at multiple warehouses (US, GB, SG, CN, DE) with a 0-day lead time, enabling rapid procurement and fast project onboarding, which helps reduce maintenance downtime and support just-in-time manufacturing schedules.
