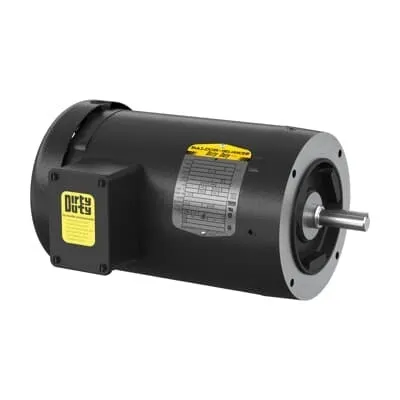

ABB 7BVEDM3555 Motor - 2 HP TEFC 60 Hz NEMA Premium
Part Number: 7BVEDM3555
Quick Summary
ABB 7BVEDM3555 Motor is a 2 HP TEFC drive designed for heavy-duty conveying and processing equipment. Its rugged construction and robust bearings help operators minimize unplanned downtime and motor overheating in harsh environments. The motor delivers reliable performance across a wide voltage range and is rated for continuous service at 60 Hz, with a 56C frame and C-face mounting to simplify installation and alignment. With certifications such as NEMA Premium efficiency, CSA EEV, and UR recognition, it meets stringent industry standards while supporting energy-efficient operation. For global manufacturers, the combination of 230/460 V compatibility, 3-phase power, and stock availability in multiple warehouses translates to faster procurement and lower total cost of ownership.
Product Information
Extended Description
7BVEDM3555 ABB: Severe Duty Motor 2 Hp 230 V (VEDM3555)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,56C,3526M,TEFC
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VEDM3555
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEDM3555
Gross Volume
3496.049 inÂł
Gross Weight
41 lb
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,56C,3526M,TEFC,F1,N
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Dirty Duty Autophoretic, 2 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEDM3555)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35E4312M774G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Direct-on-Line starting with a 2-pole design reduces drive complexity and initial hardware costs. Business Impact: Simplifies control architecture and lowers total installed cost while delivering reliable startup performance. Application: Ideal for conveyors, pumps, and fans in packaging lines. Feature: TEFC enclosure with sealed bearings (6205) provides superior protection in dusty or moist environments. Business Impact: Extends bearing life and reduces maintenance downtime, improving uptime metrics. Application: Deployment in dirty-duty automation cells and process lines. Feature: 56C frame with a 0.63 in shaft and 13.75 in width enables compact integration and straightforward coupling. Business Impact: Minimizes footprint and simplifies alignment during installation. Application: Space-constrained OEM installations and retrofit projects. Feature: Wide voltage (230 V / 460 V) and 60 Hz 3-phase operation offers flexible use across global facilities. Business Impact: Reduces spare parts and inventory complexity, accelerating global deployment. Application: International manufacturing sites with mixed electrical infrastructures. Feature: IE3 Premium efficiency and NEMA Design B torque characteristics deliver energy savings and predictable load response. Business Impact: Lowers energy bills and provides stable performance under varying loads. Application: Continuous-duty conveyors and process pumps where torque profiles matter. Feature: C-face drive end flange, horizontal mounting (F1) and footless base support versatile installation and easy alignment. Business Impact: Rapid machine integration and reduced commissioning time. Application: Retrofit projects and new line builds across industries.
