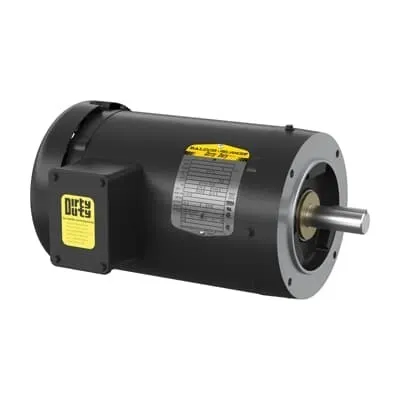

ABB VEDM3555T LV Severe Duty Motor - 2HP IE3 TEFC
Part Number: 7BVEDM3555T
Quick Summary
ABB VEDM3555T LV Severe Duty Motor is a robust 2 HP drive for continuous operation on heavy-duty conveyors and processing lines. Engineers often struggle with heat buildup, premature wear, and downtime in harsh environments; this motor addresses those challenges with a TEFC enclosure, rugged 145TC frame, and durable bearings. It carries key industry certifications to ease compliance across markets: NEMA Design B, IE3 Premium Efficiency, and CSA/UR recognition. With 230 V operation, 3-phase power, and a precise 3490 r/min speed, it delivers reliable torque and smooth startup. For OEMs and maintenance teams, the result is lower maintenance costs, easier sourcing, and safer installations that meet stringent quality expectations.
Product Information
Extended Description
7BVEDM3555T ABB: Severe Duty Motor 2 Hp 230 V (VEDM3555T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,145TC,3526M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEDM3555T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Global Commercial Alias
VEDM3555T
Gross Volume
3496.049 in³
Gross Weight
41 lb
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Frame Size 145Tc, 3 Phase, TEFC Enclosure, (VEDM3555T)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
LV Severe Duty Motors
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35E4327M774G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
Frame Size 145Tc, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
The TEFC enclosure paired with a rugged 145TC frame provides rugged protection in dusty or humid environments. This reduces windings exposure to contaminants, extends motor life, and lowers downtime due to overheating, making it ideal for conveyors, mixers, and processing equipment operating in continuous-duty lines. The IE3 Premium Efficiency rating directly lowers energy consumption and operating costs in constant-duty service, delivering measurable ROI on pumps, fans, and material-handling lines. With 3-phase 230V (dual voltage 230/460V) and a 2-pole design delivering 3490 r/min, integration is straightforward in standard US electrical systems and supports predictable speed control with direct-on-line starting for simple drives. A 1.15 service factor, 0.88 in shaft, and 145TC frame improve overload tolerance and compatibility with common pulleys and couplings, reducing selection risk during retrofits and new builds. Availability and sourcing are optimized by stock kept across multiple warehouses (US, GB, SG, CN), with 0-day lead times and a warranty structure that minimizes project delays, making this motor a reliable choice for OEMs and distributors targeting rapid deployments.
