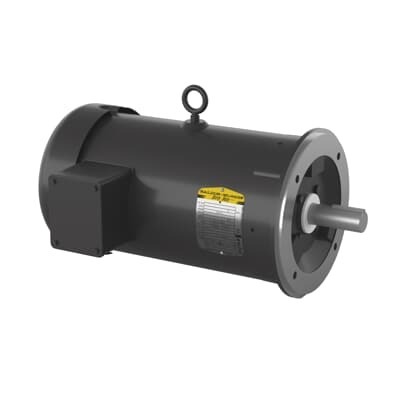

ABB 7BVEDM3611T Severe Duty Motor - NEMA Premium
Part Number: 7BVEDM3611T
Quick Summary
7BVEDM3611T is a severe duty motor designed for demanding industrial drives like conveyors, mixers, and material-handling systems. Operators often struggle with motors that fail in dirty, high-load environments, leading to costly downtime and elevated maintenance costs. This ABB model carries NEMA Premium Efficiency, CSA EEV, and UR certifications, providing regulatory confidence and long-life operation. With TEFC enclosure, a 182TC frame, and 230/460 V three-phase power, it delivers reliable performance in harsh plant areas while reducing energy use. By combining high efficiency with proven reliability, the 7BVEDM3611T lowers energy bills and simplifies spare parts planning across distributed facilities.
Product Information
Extended Description
7BVEDM3611T ABB: Severe Duty Motor 3 Hp 230 V (VEDM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3632M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VEDM3611T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ733: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VEDM3611T
Gross Volume
7192.91 in³
Gross Weight
86 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEDM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
86 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 7BVEDM3611T uses a 3 HP, 1760 RPM design at 60 Hz and supports 230/460 V three-phase power, offering balanced torque for load-sharing conveyors and packaging lines. This translates to improved cycle times and reduced heat buildup in high-duty cycles. Application: Ideal for harsh production floors where consistent speed control and robust performance are required. Feature → Business Impact → Application: TEFC enclosure and 182TC frame provide dust, moisture, and contaminant protection, extending motor life in dirty autophoretic conditions. This reduces downtime and maintenance costs while enabling reliable operation in washdown or gritty environments. Application: Suitable for dirty-duty applications like autophoretic machinery and bulk material handling. Feature → Business Impact → Application: Premium Efficiency (89.50% rated efficiency) and 0.75 power factor minimize energy consumption, lowering operating costs in continuous-running applications. Application: Long-running conveyors and fans where energy savings contribute to lower total cost of ownership. Feature → Business Impact → Application: Ball and NDE bearings (6206, 6205) deliver high reliability with reduced vibration and longer service intervals, supporting predictable maintenance planning. Application: Heavy-duty drives with high start-stop cycles in manufacturing lines. Feature → Business Impact → Application: Direct on line starting and 3-phase operation simplify electrical integration, reducing soft-start hardware needs and enabling straightforward commissioning. Application: Quick installations on existing 3-phase systems with minimal drive hardware. Feature → Business Impact → Application: 182TC frame, C-face mounting, and drive-end flange provide flexible installation options, enabling horizontal mounting and seamless fit into legacy equipment. Application: Retrofit projects or greenfield lines requiring compact, compatible motor assemblies.
