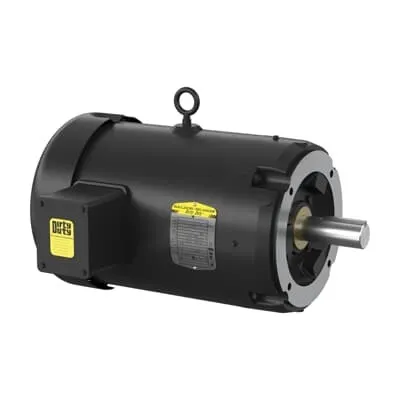

ABB VEDM3714T Motor - Severe Duty 10HP TEFC 230V
Part Number: 7BVEDM3714T
Quick Summary
ABB VEDM3714T Motor is a severe-duty, 10 HP three-phase drive motor for heavy industrial equipment in demanding environments. Operators and maintenance teams often struggle with downtime caused by overheating, seal wear, or frequent service in dusty or wet settings. The motor carries certs such as NEMA Premium efficiency, CSA EEV, and UR recognition, underscoring reliability and regulatory compliance. With its TEFC enclosure, rugged steel frame, and 230/460 V operation at 60 Hz, the VEDM3714T supports continuous duty in challenging conditions. This combination translates to lower lifecycle costs, predictable performance, and easier procurement for conveyors, pumps, and fans across manufacturing and process industries.
Product Information
Extended Description
7BVEDM3714T ABB: Severe Duty Motor 10 Hp 230 V (VEDM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TC,3752M,T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VEDM3714T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN865: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
VEDM3714T
Gross Volume
7561.383 in³
Gross Weight
147 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEDM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
215TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
147 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The VEDM3714T delivers 10 HP from a 3-phase, 60 Hz supply at 230/460 V, enabling robust torque for high-line-load applications. This translates to improved conveyor and pump performance with reduced risk of stalling, supporting stable production lines and lower operator intervention in material handling. Feature → Business Impact → Application: TEFC enclosure and a rugged 215TC frame protect the motor from dust, moisture, and contaminants in dirty-duty environments, reducing unplanned downtime and maintenance costs. Feature → Business Impact → Application: NEMA Premium efficiency and a PF of about 0.85 drive energy savings and help meet regulatory energy guidelines, cutting operating costs in continuous-process facilities like mixers and fans. Feature → Business Impact → Application: Sealed 6307 bearings and an F insulation class increase service intervals and extend bearing life, delivering lower maintenance intervals in harsh environments such as mining or aggregate processing. Feature → Business Impact → Application: C-face drive end flange, horizontal mounting, and a footless base simplify installation on standard bases, enabling quick swaps and minimal downtime during changeouts in assembly lines. Feature → Business Impact → Application: Stocked at multiple warehouses with zero-day lead time improves procurement efficiency and reduces lead times for critical spares in large-scale plants, supporting just-in-time maintenance strategies.
