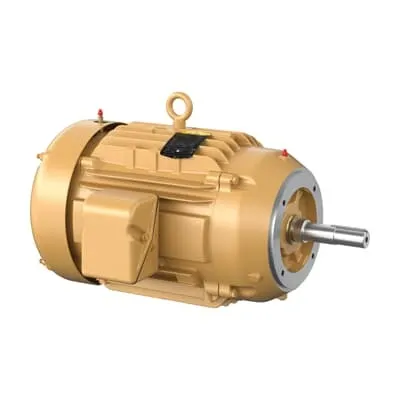

ABB 7BVEJMM2333T-5 Pump Motor - CSA EEV, NEMA Premium
Part Number: 7BVEJMM2333T-5
Quick Summary
Pump Motor 15 Hp 575 V is designed for reliable close-coupled pumping in industrial fluid-handling applications. Many plants struggle with misalignment, energy waste, and downtime, which this ABB motor helps mitigate through a robust TEFC enclosure and a 15 HP rating for demanding service. Certified for CSA EEV, UR, and NEMA Premium efficiency, it aligns with regulatory and energy-performance goals while maintaining compact plant footprint. With 3-phase 60 Hz operation at 575 V, it integrates smoothly with standard drives and controls, reducing integration risk. Stocked at multiple warehouses and ready to ship, it supports lean procurement and faster project timelines, lowering total cost of ownership for industrial buyers and system integrators.
Product Information
Extended Description
7BVEJMM2333T-5 ABB: Pump Motor 15 Hp 575 V (VEJMM2333T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254JM,0944M,T
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM2333T-5
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM2333T-5
Gross Volume
14448.906 in³
Gross Weight
255 lb
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254JM,0944M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 15 HP, 1800 RPM, Frame Size 254Jm, C-Face Mounting, 3 Phase, 575 V, 60 Hz (VEJMM2333T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
254JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
83 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
255 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.6 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
15 HP, 1800 RPM, Frame Size 254Jm, C-Face, 3 PH, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature → Business Impact → Application: Premium Efficiency (NEMA Premium) reduces energy consumption in pump systems, cutting operating costs and improving ROI for continuous-duty applications such as water handling and process fluids. In practice, the motor delivers reliable torque with lower cogging and heat, enabling longer service intervals and reduced maintenance costs in industrial plants. Application-wise, this means softer starts and steady performance across variable loads, aligning with energy audits and compliance requirements. Feature → Business Impact → Application: TEFC enclosure provides durable protection in demanding environments, minimizing leakage, contamination ingress, and corrosion risk. This translates to extended motor life in manufacturing lines and HVAC pumping loops, particularly where dust, moisture, or chemical exposure is a concern. Feature → Business Impact → Application: Close-coupled, C-face mounting with a 254JM frame simplifies installation and alignment, reducing commissioning time and maintenance access costs. This supports rapid field repairs and dependable retrofits in systems with tight space constraints. Feature → Business Impact → Application: 575 V, 3-phase, 60 Hz operation with 1765 r/min nominal speed delivers robust power for high-torque pump loads while maintaining energy efficiency, improving drive compatibility, and reducing electrical harmonics in industrial networks. Feature → Business Impact → Application: Direct-on-Line starting and 1.25 in shaft diameter enable straightforward integration with existing control gear and couplings, lowering premium-start components needs and enabling quick replacements in downtime-critical applications. Feature → Business Impact → Application: Stocked At Warehouses across regions and zero-day lead times improve procurement certainty and spare-part readiness, reducing project delays and boosting maintenance planning accuracy in large-scale facilities. These design and supply advantages underpin a lower total cost of ownership for pumps in water treatment, chemical processing, and manufacturing lines, while meeting stringent standards such as CSA EEV, UR, and NEMA Premium.
Get a Quick Quote for a ABB 7BVEJMM2333T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEJMM2333T-5?
Enquire Now
FAQs
The motor uses a 254JM frame with C-Face drive end and a footless base, permitting horizontal mounting and straightforward coupling to standard pump assemblies. It supports direct-on-line starting and 3-phase 575 V supplies, and is stocked with multi-warehouse availability to simplify procurement.
It operates at 575 V, 60 Hz, 3-phase with a rated current around 14.6 A and efficiency of about 92.4%. Certifications include CSA EEV, UR, and NEMA Premium, ensuring regulatory compliance and energy-performance credibility for industrial applications.
Yes. The TEFC enclosure provides robust protection against dust and moisture, and the 40 °C ambient rating supports continuous operation in typical industrial settings such as water treatment, processing lines, and HVAC pumping loops.
Lead time is listed as 0 day, with stock locations including multiple warehouses (e.g., US, China, and others), enabling fast fulfillment and reduced project downtime when replacing failed units or upgrading systems.
The unit carries a warranty with standard return conditions; warranty-related returns must be processed per program terms. Regular maintenance routines should follow standard TEFC motor guidelines, including bearing inspection and alignment checks during servicing.
