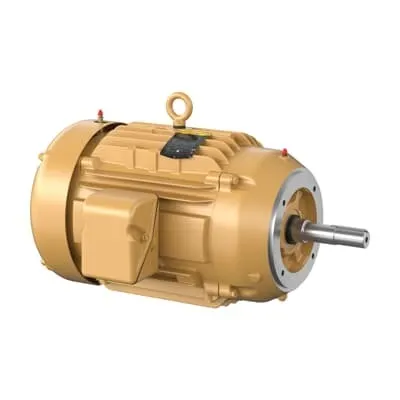

ABB 7BVEJMM2334T Pump Motor - Premium Efficiency
Part Number: 7BVEJMM2334T
Quick Summary
ABB 7BVEJMM2334T is a pump motor that drives close‑coupled pumping in industrial and commercial systems. It is designed to minimize downtime by delivering a robust 20 HP, 60 Hz operation with 230/460 V flexibility and TEFC protection. This solution carries trusted certifications such as CSA, CSA EEV, and UR, aligning with NEMA design practices for reliable performance in harsh environments. By combining premium efficiency with a compact 256JM frame and C-face mounting, it reduces energy waste and simplifies retrofits. Stock availability across multiple warehouses supports faster procurement, while the 1.15 service factor and high power factor translate into measurable cost savings and improved process reliability for HVAC, water treatment, and general pumping applications.
Product Information
Extended Description
7BVEJMM2334T ABB: Pump Motor 20 Hp 230 V (VEJMM2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256JM,0960M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM2334T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYE178: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM2334T
Gross Volume
14448.906 in³
Gross Weight
303 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
20HP,1770RPM,3PH,60HZ,256JM,0960M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 20 HP, 1800 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEJMM2334T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
303 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B09-0000-2894
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
20 HP, 1800 RPM, Frame Size 256Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and iron frame provide rugged protection against dust, moisture, and contaminants. Business Impact: Extends motor life and reduces maintenance costs in demanding environments. Application: Ideal for pumping systems in chemical plants or wastewater treatment where enclosure integrity matters. Feature: Premium Efficiency (NEMA 12-12) with a typical 83% power factor improves energy use and lowers utility bills over the motor’s life. Application: Suitable for continuous duty in facilities seeking energy stewardship and compliance with efficiency standards. Feature: 3-phase, 60 Hz operation with dual voltage (230 V / 460 V) enables flexible deployment across different plant electrical infrastructures. Business Impact: Simplifies installation, lowers wiring complexity, and reduces inventory of spare motors. Application: Water distribution and HVAC pump trains where voltage availability varies by site. Feature: 256JM frame, 1.25 in shaft, and C-face mounting with a footless base simplify installation and retrofits. Business Impact: Faster commissioning, reduced downtime, and compatible with a wide range of pump couplings. Application: Retrofit projects or new builds with compact footprint constraints. Feature: Direct On Line starting and a 4P, 3-phase configuration support reliable startup and continuous operation. Business Impact: Minimizes torque interruptions and improves system stability, delivering predictable pump performance. Application: Process pumps in manufacturing lines and irrigation systems. Feature: Stocked at multiple warehouses with 0-day lead time supports rapid deployment and project scheduling. Business Impact: Reduces project risk and capital lock-in, enabling just-in-time maintenance planning. Application: Large-scale installations and service contracts requiring quick replacement throughput. Feature: Compliance and labeling (CSA, CSA EEV, UR) along with NEMA design alignment provide regulatory assurance. Business Impact: Facilitates procurement approvals and reduces risk during audits. Application: Industry sectors with strict electrical safety and performance standards.
