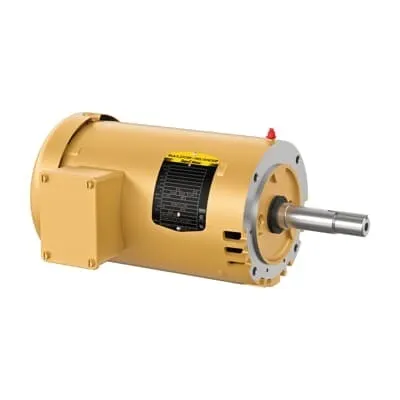

ABB VEJMM3116T Pump Motor - IE3 Premium Efficiency
Part Number: 7BVEJMM3116T
Quick Summary
ABB VEJMM3116T pump motor is engineered for reliable 1 HP close-coupled pumping in industrial and commercial systems. This model helps reduce energy waste and unplanned downtime by delivering consistent torque and smooth operation. With CSA, CSA EEV, and UR certifications, alongside IE3 premium efficiency, it supports compliant, long-life performance. The 230/460 V, 3-phase design paired with a 143JM frame and C-face mounting delivers straightforward integration into existing platforms, while open drip-proof (ODP) protection enables versatile installation across demanding environments.
Product Information
Extended Description
7BVEJMM3116T ABB: Pump Motor 1 Hp 230 V (VEJMM3116T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143JM,3520M,OP
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3116T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYE4124: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3116T
Gross Volume
5274.135 in³
Gross Weight
37 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143JM,3520M,OPEN,F1
Made To Order
No
Medium Description
Close Coupled Pump, 1 HP, 1800 RPM, Frame Size 143Jm, C-Face Mounting, 3 Phase, ODP Enclosure, 230/460 V, 60 Hz (VEJMM3116T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
37 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Jm, C-Face, 3 PH, ODP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces operating costs in continuous pumping applications, delivering measurable energy savings over the motor’s life. This is particularly impactful for water transfer and process pumps in facilities aiming for lower total cost of ownership and improved sustainability. Feature → Business Impact → Application: Close-coupled pump design with a 143JM frame and ODP enclosure simplifies mounting and cooling, enabling quicker installation and easier maintenance in compact spaces found on conveyance lines or recirculation loops. Feature → Business Impact → Application: Direct On Line starting and 3-phase, 60 Hz operation provide straightforward electrical integration with minimal starter hardware, reducing upfront equipment and commissioning time in OEM assemblies. Feature → Business Impact → Application: 1 HP output with 1770 r/min nominal speed and a 1.15 service factor supports reliable continuous duty in general purpose pumping, minimizing motor overheating and extending service intervals in municipal or industrial water systems. Feature → Business Impact → Application: CSA, CSA EEV, and UR certifications, plus NEMA design B construction, offer compliance assurance for regulated environments and compatibility with standard drive systems, lowering risk for plant-wide deployments and cross-site sourcing.
