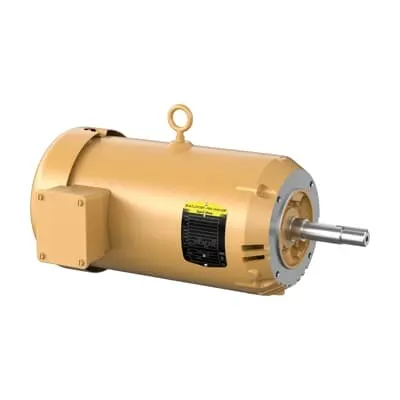

ABB 7BVEJMM3211T-8 Pump Motor - IE3 Premium Efficiency
Part Number: 7BVEJMM3211T-8
Quick Summary
ABB 7BVEJMM3211T-8 Pump Motor delivers 3 HP at 200 V for close-coupled pumping in industrial systems. Its direct-on-line start and compact 182JM frame with C-face mounting simplify installation and retrofit in space-constrained equipment rooms. With certifications including CSA, CSA EEV, and UR, plus IE3 premium efficiency under 60 Hz operation, it supports regulatory compliance and energy savings. Designed for reliable 3-phase service in industrial processes, it balances performance with predictable maintenance and spare-part availability in global warehouses. This combination of efficiency, rugged build, and flexible mounting makes it a strong value proposition for OEMs and service teams seeking dependable pump motor solutions.
Product Information
Extended Description
7BVEJMM3211T-8 ABB: Pump Motor 3 Hp 200 V (VEJMM3211T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182JM,3632M,OD
Ambient Temperature
40 °C
Bearing
6207, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3211T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3211T-8
Gross Volume
5274.135 in³
Gross Weight
74 lb
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182JM,3632M,ODTF,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 1800 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, ODTF Enclosure, 200 V, 60 Hz (VEJMM3211T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Close Coupled Pump
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
74 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.7 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B36H191Y488G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 182Jm, C-Face, 3 PH, ODTF, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
200 V
Feature → Business Impact → Application: The IE3 premium efficiency rating delivers higher operating efficiency, reducing energy costs over the motor’s life and improving overall plant energy performance. In practice, this translates to measurable savings in continuous pumping duties on 3HP, 200 V, 60 Hz systems, especially across multiple pumps in manufacturing lines and HVAC cooling loops. Feature → Business Impact → Application: The ODTF enclosure paired with a 182JM frame and C-Face mounting provides a rugged housing that resists harsh environments and simplifies alignment during installation, cutting commissioning time for close-coupled pump assemblies in process lines. Feature → Business Impact → Application: Direct On Line starting and a 4-pole design (1760 r/min, synchronous 1800 r/min) enable straightforward, low-maintenance startup for220V/60Hz 3-phase pumps, reducing control hardware and energizing pumps quickly in industrial facilities. Feature → Business Impact → Application: A 0.88 in shaft diameter with precision bearings (6207, Ball; 6205 NDE) supports long bearing life and stable torque delivery, improving reliability in continuous-duty pumps used in food processing, chemical handling, and water treatment. Feature → Business Impact → Application: Compliance-oriented design with CSA, CSA EEV, UR certifications and a NEMA B design code ensures regulatory alignment for regulated industries, enabling smoother procurement and reducing risk in audits. Feature → Business Impact → Application: The motor’s dimensions (16.125 in W, 21.625 in L, 15.125 in H) and weight (74 lb) provide a compact footprint suitable for retrofit projects where space is at a premium, helping OEMs meet installation tolerances in beltless or direct-drive pump configurations.
