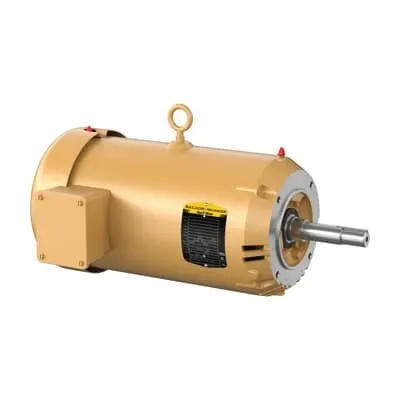

ABB VEJMM3218T Pump Motor - CSA EEV UR Certified
Part Number: 7BVEJMM3218T
Quick Summary
Pump motor VEJMM3218T from ABB delivers 5 HP, 230 V three-phase power for close-coupled pumping in water treatment and process systems. Engineers often grapple with space constraints, mounting alignment, and downtime from inefficient motors. The VEJMM3218T carries CSA, CSA EEV, and UR certifications, with a NEMA design framework to ensure reliable operation across markets. Its Premium Efficiency rating, 60 Hz compatibility, and ODP enclosure help reduce energy costs, simplify procurement, and support longer intervals between maintenance for OEM and maintenance teams. For equipment owners, this translates into lower operating expenses and higher uptime across industrial pumping applications. It supports fast sourcing through widespread stocking.
Product Information
Extended Description
7BVEJMM3218T ABB: Pump Motor 5 Hp 230 V (VEJMM3218T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184JM,3640M,OD
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3218T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYQ830: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3218T
Gross Volume
7803 in³
Gross Weight
94.999 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184JM,3640M,ODP,F1
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 1800 RPM, Frame Size 184Jm, C-Face Mounting, 3 Phase, ODP Enclosure, 230/460 V, 60 Hz (VEJMM3218T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
Close Coupled Pump
Product Net Depth / Length
27 in
Product Net Height
17 in
Product Net Weight
94.999 lb
Product Net Width
17 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 1800 RPM, Frame Size 184Jm, C-Face, 3 PH, ODP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Close-coupled design and an 184JM frame with C-face mounting simplify installation and reduce space requirements. This translates to faster commissioning and fewer alignment issues during retrofits and new pump builds. The motor operates at 60 Hz with 5 HP and 1800 r/min, making it a versatile match for compact, high-demand pump trains in water treatment and process systems. Efficiency and power quality are central to its value. With an efficiency around 89.5% and a power factor near 0.80, energy costs drop and electrical demand stays predictable in continuous-duty operation. The 1.15 service factor provides a margin for short overloads without sacrificing reliability. Mechanical design supports durability in harsh environments. An Open Drip Proof (ODP) enclosure and a footless base simplify mounting and protection while the 0.88 in shaft diameter aligns with standard couplings. The C-face drive-end flange accommodates common pump couplings, reducing custom fabrication. Electrical compatibility and startup approach streamline integration. The 230/460 V, 3-phase, 60 Hz configuration supports widespread plant voltages, and Direct On Line starting minimizes control hardware while enabling quick startups for routine pump cycling. The bearing set (6207/6205 Ball) offers solid longevity with manageable maintenance intervals. Certification and availability boost procurement efficiency. CSA, CSA EEV, and UR certifications ensure electrical safety and global eligibility, while frame 184JM and NEMA guidance support standard maintenance practices. Stocked across multiple warehouses facilitates rapid fulfillment and reduces downtime in mission-critical pumping applications. Installation advantages extend to compatibility with existing drive systems and minimal maintenance downtime. The readily available spare parts, standard frame size, and accessible bearings help service teams reduce MTTR. For OEMs, the motor's high efficiency and robust build support long-term savings in production uptime.
