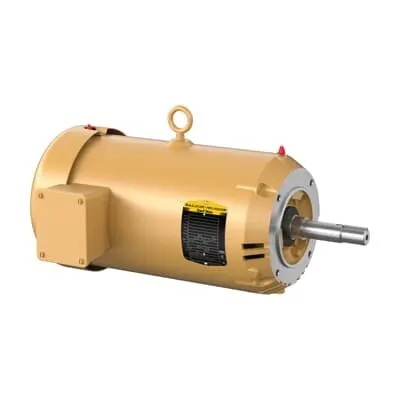

ABB VEJMM3219T Pump Motor - CSA EEV/UR Certified
Part Number: 7BVEJMM3219T
Quick Summary
The ABB VEJMM3219T pump motor provides reliable 7.5 HP, 230/460 V operation for close-coupled pump systems. In many facilities, space constraints and downtime complicate alignment and maintenance; this motor's compact footprint and robust bearings mitigate that. It carries CSA, CSA EEV, and UR certifications, along with premium-efficiency ratings and 60 Hz compatibility, ensuring reliable performance across demanding environments. This combination supports seamless integration with Baldor-Reliance pump ecosystems and reduces lifecycle costs through straightforward installation and dependable service. Designed for horizontal mounting and the standard 184JM footprint, it fits a wide range of existing pump housings.
Product Information
Extended Description
7BVEJMM3219T ABB: Pump Motor 7.5 Hp 230 V (VEJMM3219T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184JM,3632M,
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3219T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ302: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3219T
Gross Volume
3590.443 in³
Gross Weight
100 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184JM,3632M,ODP,F
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 3600 RPM, Frame Size 184Jm, C-Face Mounting, 3 Phase, ODP Enclosure, 230/460 V, 60 Hz (VEJMM3219T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
100 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.2 A | 8.6 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184Jm, C-Face, 3 PH, ODP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature 1: Dual voltage 230/460 V and 60 Hz enables flexible plant power supply matching and minimizes spare parts inventory, reducing downtime and capital tied up in transformers. Business impact: simplified procurement and faster deployment across multiple pump installations. Application: large-scale process lines and water handling systems with mixed voltage sites. Feature 2: 184JM frame with C-face mounting and a footless base supports compact footprints and straightforward alignment, speeding up installation and maintenance. Business impact: faster commissioning and lower labor costs in retrofit projects. Application: close-coupled pumps in confined spaces. Feature 3: Premium efficiency with 88.5% rated efficiency and 89% power factor lowers energy use and thermal load in continuous-duty service. Application: chemical processing and food & beverage lines. Business impact: reduced operating costs and cooler equipment. Feature 4: Open-Drip-Proof enclosure and Direct On Line start simplify cooling, installation, and start-up sequences. Application: general industry pumps; minimized control complexity. Business impact: lower maintenance and faster start-up. Feature 5: Compliance and certifications (CSA, CSA EEV, UR) ensure regulatory alignment for global sourcing. Business impact: risk mitigation and easier supplier qualification. Feature 6: Mechanical and mounting details such as 184JM frame, 0.88 in shaft diameter, 100 lb weight, and 3-phase operation support robust, durable performance with long service life.
