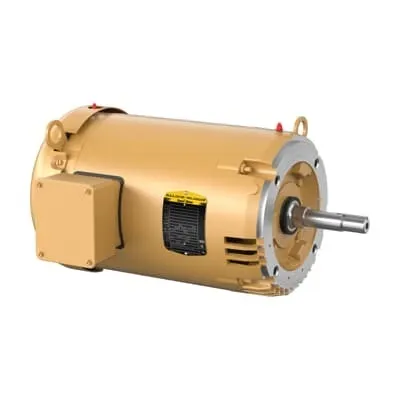

ABB VEJMM3311T Pump Motor - CSA/UR Certified
Part Number: 7BVEJMM3311T
Quick Summary
ABB VEJMM3311T Pump Motor is a high-efficiency, close-coupled motor designed for demanding industrial pumping applications in water treatment, chemical processing, and general fluids handling. This 7.5 HP, 3-phase unit operates at 60 Hz with dual voltage 230 V / 460 V, offering a compact footprint and an ODP enclosure for rugged environments. Engineers often struggle with downtime, space constraints, and regulatory compliance; this motor addresses those pain points with stock availability, direct-on-line starting, and robust protection. It carries CSA, CSA EEV, and UR certifications, strengthening safety and reliability across North American facilities. For system integrators and procurement teams, the combination of premium efficiency, solid lead times, and ready-to-install hardware translates to faster project delivery and predictable maintenance costs.
Product Information
Extended Description
7BVEJMM3311T ABB: Pump Motor 7.5 Hp 230 V (VEJMM3311T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213JM,3734M,
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3311T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYN905: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3311T
Gross Volume
7561.383 in³
Gross Weight
125 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213JM,3734M,ODP,F
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face Mounting, 3 Phase, ODP Enclosure, 230/460 V, 60 Hz (VEJMM3311T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
79 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
125 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.2 A | 9.6 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face, 3 PH, ODP, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The VEJMM3311T delivers 7.5 HP in a 3-phase, 60 Hz configuration with dual voltage (230 V / 460 V), enabling flexible integration across different plant electrical systems and minimizing spare-part inventories. This translates to cost savings and quicker commissioning in pump systems used in water treatment or chemical processing. Feature → Business Impact → Application: The close-coupled design with a 213JM frame and C-face mounting reduces installation space and simplifies alignment, decreasing field labor and startup time in line-fed pumping assemblies. Feature → Business Impact → Application: An ODP enclosure and 1.15 service factor enhance reliability in demanding environments, supporting continuous operation in continuous-duty applications such as industrial process loops. Feature → Business Impact → Application: Premium efficiency (91.70%) lowers energy consumption and operating costs over the motor’s life, improving ROI for large pump installations in food & beverage, mining, or infrastructure projects. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time and no Make-To-Order requirements minimizes downtime and procurement risk, enabling just-in-time delivery for uptime-critical pump retrofits and new builds. Feature → Business Impact → Application: Direct On Line starting reduces maintenance components and startup energy surges, making VEJMM3311T suitable for retrofit projects where compact drives and straightforward installation are priorities in HVAC and water treatment plants.
