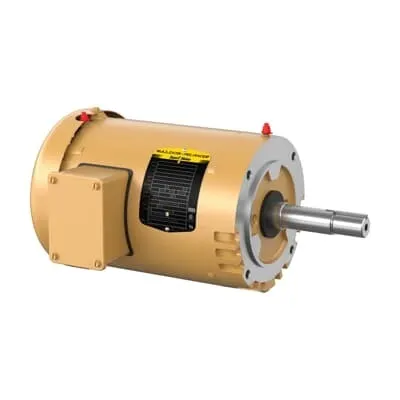

ABB 7BVEJMM3554T Close Coupled Pump TEFC Enclosure 60 Hz
Part Number: 7BVEJMM3554T
Quick Summary
Close Coupled Pump by ABB delivers a compact, reliable 1.5 HP motor solution for 3-phase pumping across industrial processes. This design addresses space constraints, mounting compatibility, and power coordination challenges common in retrofit projects and new installations. Certifications including CSA, CSA EEV, and UR with a NEMA-aligned TEFC enclosure provide confidence for harsh environments. With dual voltage capability (230/460 V) and a 60 Hz rating, this pump motor supports streamlined procurement, faster commissioning, and scalable maintenance through widely stocked inventories for rapid replacement.
Product Information
Extended Description
7BVEJMM3554T ABB: Pump Motor 1.5 Hp 230 V (VEJMM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYM317: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3554T
Gross Volume
3496.049 in³
Gross Weight
45 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,TEFC
Made To Order
No
Medium Description
Close Coupled Pump, 1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEJMM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Close Coupled Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
45 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP, 1770 r/min motor delivers robust pumping performance with a 1.15 service factor, enabling continuous operation in demanding processes while maintaining steady flow. This translates to reduced downtime and improved process stability in mining, manufacturing, and water treatment applications. Feature → Business Impact → Application: TEFC enclosure protects the motor in dusty or humid environments, lowering enclosure-related failures and extending service life in open plant floors or chemical processing areas. Application: ideal for closed-loop cooling and process water transfer where ingress protection and reliability matter. Feature → Business Impact → Application: 145JM frame with C-Face mounting and horizontal orientation simplifies retrofits and new installs, reducing installation time and ensuring compatibility with standard pump housings. Application: retrofit projects and new line integrations. Feature → Business Impact → Application: Direct On Line starting with 3-phase supply minimizes control hardware and reduces startup delay, improving initial commissioning and startup reliability in batch processes. Application: conveyors, wash stations, and modular pump stations. Feature → Business Impact → Application: Dual voltage 230/460 V and 60 Hz operation streamline electrical design, enabling global procurement and reducing spare parts complexity. Application: international plants and multi-site deployments. Feature → Business Impact → Application: Built-in efficiency of 86.50% and a 1.5 HP rating support energy savings over long-duty cycles, lowering operating costs in continuous pumping tasks. Application: cooling loops and long-run water transfer systems.
Get a Quick Quote for a ABB 7BVEJMM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEJMM3554T?
Enquire Now
FAQs
Yes. The 7BVEJMM3554T is designed for dual voltage 230/460 V at 60 Hz and operates on a 3-phase supply. With a C-Face mounting and a 145JM frame, it fits standard motor housings and can be wired for direct-on-line starting, simplifying control panel design and minimizing wiring complexity.
The motor delivers 1.5 HP with a rated speed of 1770 r/min, efficiency around 86.50%, and a service factor of 1.15. These specs support reliable continuous operation in pumping applications while reducing energy consumption compared with lower-efficiency units, contributing to lower total cost of ownership over the pump system.
Best suited for closed-loop pumping, water transfer, and process cooling in manufacturing or facilities with space constraints. The unit’s horizontal mounting, TEFC enclosure, and robust steel frame enable reliable operation in demanding environments, making it a solid choice for retrofits and new installations.
The motor carries CSA, CSA EEV, and UR certifications with NEMA standards alignment, ensuring compliance for safety and electrical performance. The TEFC enclosure further supports compliance in environments with dust, moisture, or wash-down requirements.
With 0 day lead time and stocking at multiple warehouses, rapid replacement reduces downtime. The Direct On Line start, modular frame, and straightforward mounting simplify maintenance and spare parts planning, while the durable steel frame and bearing design support long service intervals and energy-efficient operation.
