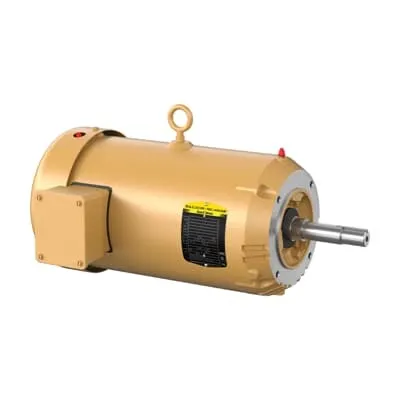

ABB 7BVEJMM3611T-5 Pump Motor - 3HP 575V IE3
Part Number: 7BVEJMM3611T-5
Quick Summary
7BVEJMM3611T-5 Pump Motor drives 3 HP pumps at 575 V in industrial fluid handling. Engineers face downtime and energy waste; this motor reduces both through premium efficiency and a robust TEFC enclosure. The unit carries CSA, CSA EEV, and UR certifications, with NEMA-based safety standards ensuring reliable operation in harsh environments. With a compact close-coupled design and 182JM frame, it integrates easily with 3-phase pumps, delivering cost-effective maintenance and predictable performance across U.S. and global supply chains. Its 60 Hz, 1760 rpm operation aligns with common plant drives, reducing clock-to-load mismatch and simplifying integration. That alignment translates into lower energy bills, shorter commissioning times, and a clear path to standardization across multiple facilities.
Product Information
Extended Description
7BVEJMM3611T-5 ABB: Pump Motor 3 Hp 575 V (VEJMM3611T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182JM,3632M,TE
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3611T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYM952: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3611T-5
Gross Volume
3590.443 in³
Gross Weight
70 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182JM,3632M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 1800 RPM, Frame Size 182Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEJMM3611T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
70 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 182Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Premium IE3 efficiency delivers measurable energy savings for 3 HP, 575 V, 3-phase pumping applications, reducing operating costs over the motor’s lifetime while maintaining reliable torque. The TEFC enclosure protects the windings and bearings from dust, moisture, and contaminants common in manufacturing floors, extending service intervals and lowering maintenance costs for industrial cooling loops and water pumping systems. The close-coupled 182JM frame with C-face mounting simplifies installation in tight spaces, enabling rapid retrofit projects and minimizing downtime during plant upgrades. A 60 Hz, 1760 rpm duty profile aligns with standard plant electrical distributions, reducing drive integration challenges and transformer sizing needs, while a direct-on-line start supports straightforward control schemes in automation environments. Stocked at multiple warehouses with 0 day lead time enhances procurement resilience and shortens project schedules, helping maintenance teams meet tight uptime targets.
