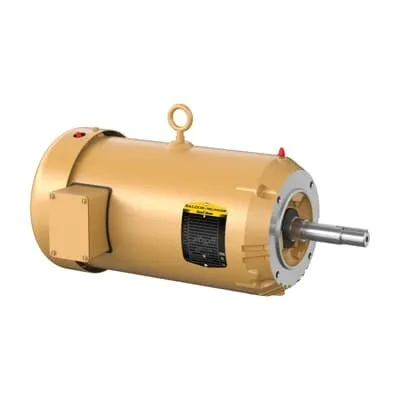

ABB 7BVEJMM3615T-5 Pump Motor - 5 HP, 575 V, IE3
Part Number: 7BVEJMM3615T-5
Quick Summary
ABB 7BVEJMM3615T-5 Pump Motor is a compact, close-coupled solution designed for 3-phase, TEFC-enclosed operation at 575 V and 60 Hz. This 5 HP motor delivers robust performance with an 1.15 service factor and a synchronous speed of 1800 rpm, making it ideal for demanding pumps in industrial facilities. Engineers often wrestle with energy waste, downtime, and compliance gaps; this motor addresses those challenges by aligning with IE3 premium efficiency and CSA/CSA EEV/UR certifications for global installation. Its 184 JM frame, C-face mounting, and standard shaft dimensions simplify retrofits and spare-parts planning, enabling faster procurement and reduced lifecycle costs for pumping systems.
Product Information
Extended Description
7BVEJMM3615T-5 ABB: Pump Motor 5 Hp 575 V (VEJMM3615T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184JM,3642M,TE
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3615T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYS067: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3615T-5
Gross Volume
3590.443 in³
Gross Weight
94 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184JM,3642M,TEFC,F1
Made To Order
No
Medium Description
Close Coupled Pump, 5 HP, 1800 RPM, Frame Size 184Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEJMM3615T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Close Coupled Pump
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
94 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.3 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
5 HP, 1800 RPM, Frame Size 184Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
The IE3 premium efficiency designation translates to lower energy consumption and reduced operating costs, supporting longer equipment life and improved overall equipment effectiveness (OEE) in continuous pump service. This motor’s TEFC enclosure protects internal windings from dust and moisture, increasing reliability in demanding environments and enabling installation in moderate ambient temperatures up to 40 °C, which minimizes cooling requirements. The 575 V, 3-phase supply and 60 Hz rating align with common plant electrical distributions, enabling straightforward integration with existing motor drives and wiring schemes, while Direct On Line starting reduces soft-start dependencies and accelerates pump response times in variable-torque applications. Frame 184JM, shaft diameter 0.88 in, and F1 mounting position offer a predictable retrofit footprint with proven compatibility to standard base plates and couplings. Bearing configurations (6207 and 6205 ball bearings) provide durable service under continuous duty, while insulation class F supports sustained performance at elevated temperatures. The motor’s 5 HP output, 5.3 A nominal current, and 0.78 power factor contribute to accurate electrical planning and lower demand charges. With CSA EEV and UR certifications, this unit satisfies stringent North American and international compliance, reducing project risk for global installations. Stocked across multiple warehouses, it enables zero-day lead times in many regions, translating into faster commissioning and reduced maintenance intervals for water treatment, HVAC, and process-pumping applications.
