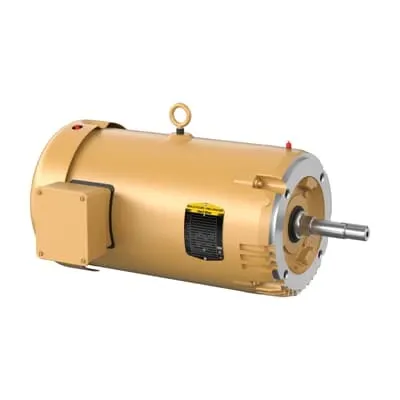

ABB 7BVEJMM3710T Pump Motor - CSA EEV/UR Certified
Part Number: 7BVEJMM3710T
Quick Summary
ABB 7BVEJMM3710T Pump Motor delivers a robust 7.5 HP, 3-phase solution for close-coupled pump applications in industrial environments. Its compact design and TEFC enclosure enable reliable performance under demanding conditions, reducing downtime and maintenance costs. With a 60 Hz power supply and dual 230/460 V capability, it fits seamlessly into existing plant electrical infrastructure. This model is stocked across multiple US and international warehouses with zero lead time, accelerating project timelines. Certified by CSA, CSA EEV, and UR, it meets rigorous safety and performance standards for critical process pumping. For engineers and procurement teams, it combines ease of sourcing with proven reliability in water handling, HVAC, and process-pumping applications.
Product Information
Extended Description
7BVEJMM3710T ABB: Pump Motor 7.5 Hp 230 V (VEJMM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213JM,3738M,
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYR071: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3710T
Gross Volume
7561.383 in³
Gross Weight
136 lb
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213JM,3738M,TEFC
Made To Order
No
Medium Description
Close Coupled Pump, 7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEJMM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
213JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
136 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 7.5 HP output and rated speed of 1770 r/min provide ample torque for close-coupled pumps, delivering high starting torque and steady flow in demanding pump systems. This translates to measurable efficiency gains and reduced motor wear in continuous-duty operations. Application: Ideal for water treatment, industrial processes, and HVAC pumping where reliability and energy efficiency matter. Feature → Business Impact → Application: TEFC enclosure and steel frame (213JM) offer robust protection against dust and moisture in harsh environments, minimizing unplanned downtime and extending bearing life. Application: Suitable for dusty plant floors, high-potential humidity zones, and open mechanical rooms. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) and insulation class F reduce heat, improve power factor (0.80), and lower operating costs over the motor’s life. Application: Beneficial for facilities seeking regulatory compliance and energy savings on large pump arrays. Feature → Business Impact → Application: Direct On Line starting and 3-phase 230/460 V operation simplify electrical installation and integration with existing VFDs and switchgear. Application: Rapid deployment in process lines and water handling where quick hook-ups and minimal downtime are critical. Feature → Business Impact → Application: 1.15 service factor and 1800 r/min synchronous speed offer a reliable balance of overload tolerance and performance. Application: Critical pumping stages in municipal and industrial plants where consistent delivery is essential. Additional Context: Stocked-at warehouses across regions and a 0-day lead time support just-in-time procurement, reducing inventory costs and project risk. Long-tail keywords such as “close coupled pump motor 7.5 HP,” “230/460 V 3-phase motor,” and “premium efficiency pump motor” are integrated to reflect practical search intents without compromising readability.
Get a Quick Quote for a ABB 7BVEJMM3710T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEJMM3710T?
Enquire Now
FAQs
Install as a 3-phase, 230/460 V motor with a TEFC enclosure and 213JM frame. Use direct-on-line starting and ensure horizontal mounting with a C-face flange. The unit is suited for close-coupled pump configurations and can be wired to standard 60 Hz plant supplies with appropriate protective devices.
Specifications include 7.5 HP output, 1770 r/min nominal speed, 3 phases, 230/460 V possibility, PF 0.80, efficiency around 91.7%, service factor 1.15, frame size 213JM, and insulation class F. It uses ball bearings (6309) and a direct-on-line starting method for simple integration.
Yes. The motor’s Close Coupled Pump configuration, TEFC enclosure, 213JM frame, and 60 Hz operation suit water treatment and similar process pumping where reliable torque, compact footprint, and easy maintenance are critical.
The motor is certified by CSA, CSA EEV, and UR, with NEMA design features and a premium efficiency rating. These certifications support safety compliance and energy performance on regulated projects.
With a continuous-duty rating, 1.15 service factor, and robust bearings, expect extended bearing life and reduced maintenance cycles. Premium efficiency reduces energy costs over the motor’s life, delivering faster ROI on large pump installations.
