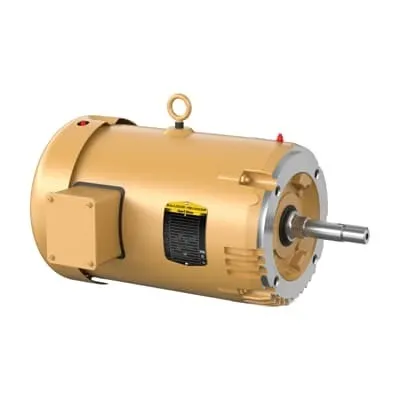

ABB 7BVEJMM3714T Pump Motor - IE3 Premium Efficiency
Part Number: 7BVEJMM3714T
Quick Summary
ABB 7BVEJMM3714T is a pump motor that drives close-coupled pumps in industrial and commercial fluid handling. It delivers 10 HP at 230/460 V, 60 Hz with a three-phase supply for reliable, compact pump duty. Users often contend with downtime, rising energy costs, and compatibility issues when upgrading legacy motors. This model combines premium efficiency (IE3), a robust TEFC enclosure, and a 215JM frame to simplify installation and maintenance. With a 1.15 service factor and zero-day lead time, it supports high uptime and rapid deployment across stocked warehouses in the US and worldwide. Certifications include CSA, CSA EEV, and UR, reinforcing performance compliance in regulated environments while enabling efficient, continuous pump operations.
Product Information
Extended Description
7BVEJMM3714T ABB: Pump Motor 10 Hp 230 V (VEJMM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3752M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYG116: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3752M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEJMM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
215JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
The 7BVEJMM3714T motor integrates a high-efficiency 10 HP design with a 1770 rpm rated speed and 4-pole configuration, which translates into lower energy consumption during continuous pump duty and predictable runtime in process applications. This directly impacts operating costs by delivering a rated efficiency of 91.70% and a power factor of 85%, reducing electrical demand and improving motor performance under load. The IE3 premium efficiency designation, combined with a CE/U.S. regulatory framework (CSA, CSA EEV, UR) and NEMA design A standards, provides compliance assurance for regulated facilities and upgraded installations. A TEFC enclosure protects vital windings in harsh environments, while the TEFC/Frame 215JM combination supports straightforward bolting, alignment, and maintenance with C-face mounting and horizontal orientation for close-coupled pump assemblies. Direct On Line starting minimizes drive complexity and optimization requirements, enabling quick integration with existing electrical systems and simplified commissioning, even in multi-pump configurations. The motor’s service factor of 1.15 offers a built-in margin for brief overloads, helping prevent nuisance trips during start-up or surge conditions. With stock available at multiple warehouses (US and international), purchase workflows stay fast, reducing project downtime and accelerating installation readiness for water, HVAC, and general pumping duties across industrial facilities.
