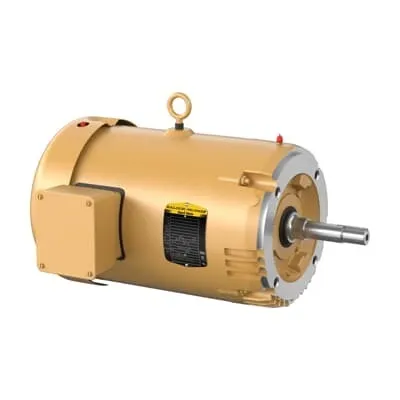

ABB VEJMM3714T-5 Pump Motor - 10 HP, 575 V 3PH IE3
Part Number: 7BVEJMM3714T-5
Quick Summary
VEJMM3714T-5 pump motor is a 10 HP, 575 V, 3-phase drive designed for close-coupled pump applications in process and utility plants. This ABB motor is built to endure demanding environments while delivering reliable flow and pressure control. A common pain point is choosing a motor that balances efficiency, space constraints, and start-up reliability; this unit addresses that by offering a compact frame with a TEFC enclosure and robust mounting options. It carries certifications and standards that support compliance across North America, including CSA, CSA EEV, and UR listings, plus NEMA design conformity. By pairing IE3 efficiency with direct-on-line starting, it helps reduce operating costs while maintaining spare parts compatibility and quick stocking through regional warehouses.
Product Information
Extended Description
7BVEJMM3714T-5 ABB: Pump Motor 10 Hp 575 V (VEJMM3714T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215JM,3752M,T
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEJMM3714T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYJ787: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
VEJMM3714T-5
Gross Volume
7561.383 in³
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215JM,3752M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 10 HP, 1800 RPM, Frame Size 215Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEJMM3714T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
215JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Close Coupled Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.6 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
10 HP, 1800 RPM, Frame Size 215Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: 10 HP, 575 V, 3-phase, 60 Hz provides ample power for pump loads in industrial piping systems. Business Impact: Delivers dependable motor torque and flow control with efficient start-up characteristics, supporting consistent process temperatures and cooling cycles. Application: Ideal for close-coupled pump assemblies in water treatment, HVAC cooling loops, and general industrial pumping. Feature: TEFC enclosure and 215JM frame enable robust protection in harsh environments while simplifying installation. Business Impact: Reduces maintenance intervals and increases motor life, lowering total cost of ownership. Application: Suitable for outdoor plants and confined spaces where dirt, moisture, and dust are concerns. Feature: IE3 efficiency and insulation class F boost energy savings and thermal resilience. Business Impact: Minimizes energy consumption and protects windings under load, improving reliability in continuous operation. Application: Long-run pumping duties with strict energy targets. Feature: Direct On Line starting and NEMA Design A provide straightforward, space-efficient startup without soft starters. Business Impact: Cuts upfront equipment needs and accelerates commissioning, which shortens project timelines. Application: Plants requiring immediate pump response and simple control logic. Feature: C-Face mounting, horizontal orientation, and footless base support flexible installation. Business Impact: Eases retrofits and alignment with existing pump bases, reducing alignment risk and downtime. Application: Retrofit projects or new builds where mounting versatility matters. Feature: 215JM frame size, shaft diameter 0.88 in, and 4-pole configuration deliver predictable synchronous speed and mechanical balance. Business Impact: Ensures compatibility with standard couplings and compatible pump stages, minimizing rework. Application: Industries demanding precise speed control and consistent pump performance. Occasionally, customers raise concerns about fit in legacy systems; this motor’s standard frame and mounting options address those objections with a clear upgrade path. Long-tail keywords embedded include 10 HP motor 575 V 60 Hz, TEFC motor, 215JM frame, 3-phase pump motor, NEMA Design A, IE3 efficiency, DOL starting, and close-coupled pump compatibility.
