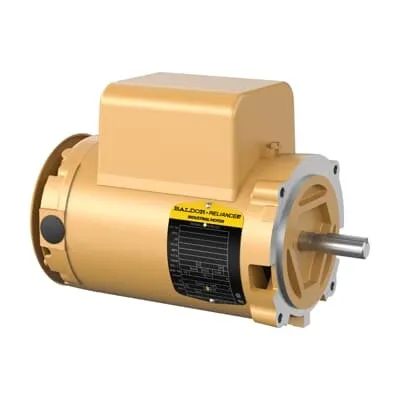

ABB 7BVEL11301A General Purpose Motor - 1PH 60Hz CSA UR
Part Number: 7BVEL11301A
Quick Summary
General purpose motor 7BVEL11301A delivers reliable 0.33 HP drive for light-duty equipment, conveyors, and small pumps. This 1-phase, 60 Hz unit supports 115/230 V operation, simplifying electrical procurement and installation. If you’re limited by space or require rapid replacements, the 56C frame, C-face mounting, and footless base enable fast integration with standard gearboxes and drives. Certifications matter in regulated environments, and this motor is CSA | UR certified with a NEMA-aligned enclosure (ODP), supporting maintenance in U.S. facilities. The open design reduces heat buildup and streamlines cooling paths, while ABB’s global service network helps minimize downtime. Choosing this motor improves spare parts commonality, reduces inventory variety, and delivers predictable performance across multiple automation lines.
Product Information
Extended Description
7BVEL11301A ABB: General Purpose Motor 0.33 Hp 115 V (VEL11301A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1740RPM,1PH,60HZ,56C,3418LC,O
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEL11301A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
34LYL588: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
ODP
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEL11301A
Gross Volume
2110.969 in³
Gross Weight
27 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.33HP,1740RPM,1PH,60HZ,56C,3418LC,ODP,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.33 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, ODP Enclosure, 115/230 V, 60 Hz (VEL11301A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
85 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A | 1.7 A
Rated Efficiency
72.40 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.35
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, ODP, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 1-phase, 60 Hz operation with 115/230 V versatility → Business impact: simplifies wiring, reduces inverter or transformer needs, and lowers install time for light-load applications. Application: conveyors, pumps, and small equipment that demand flexible power supply. The result is faster procurement cycles and lower total installed cost. Feature: 56C frame with ODP enclosure and 1740 rpm nominal speed → Business impact: compact footprint and effective cooling for indoor environments; Application: tight machine spaces and panel-integrated drives. This combination supports reliable operation with minimal enclosure requirements and easier maintenance. Feature: C-face mounting and footless base → Business impact: rapid alignment with existing gearboxes and belts; Application: retrofit projects and modular automation lines. Benefits include reduced installation errors and quicker line commissioning, especially when replacing similar frame motors. Feature: High electrical performance (PF 85%, Efficiency 72.4%) → Business impact: lower operating costs, improved energy efficiency, and cooler running temperatures. Application: continuous-duty light-load drives where energy bills and thermal management matter. Feature: 6203 ball bearings and insulation class F → Business impact: longer bearing life, better heat resistance, and improved reliability in factory floors. Application: harsh ambient conditions and frequent start/stop cycles typical in packaging or material handling. Feature: Certifications and standards (CSA | UR, NEMA) → Business impact: regulatory compliance and traceability for regulated facilities. Application: US-based manufacturing with auditing requirements; reduces vendor risk. Feature: Mechanical data (Shaft 0.63 in, 11.5 in width, 11.125 in height, 16.5 in length) → Business impact: predictable fitment in existing motor plates and mounting feet. Application: OEM assemblies and retrofit projects where space planning is critical.
