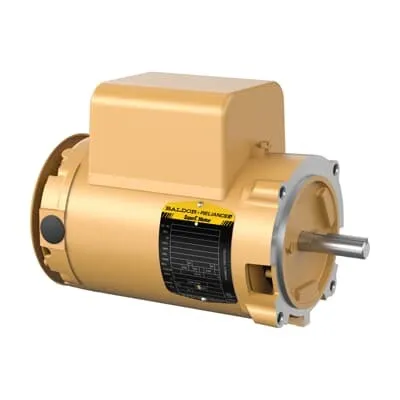

ABB VEL11304A General Purpose 1PH Motor - UL/UR Energy
Part Number: 7BVEL11304A
Quick Summary
General Purpose 1PH Open motor delivers reliable, compact power for conveyors, pumps, and machine tools in manufacturing lines. Engineers often face compatibility gaps and downtime when sourcing a dual-voltage, single-phase drive that fits current panels. This ABB VEL11304A carries UL/UR Energy certification and NEMA-standard design with an OPEN enclosure, 56C frame, and C-face mounting for straightforward installation. It combines 0.5 HP, 1725 RPM, and a dual voltage rating of 115/230 V to support common plant power layouts while maintaining predictable performance. The result is a robust, easy-to-spec solution that reduces procurement complexity and supports faster project timelines, helping maintenance teams and OEMs deliver reliable uptime and improved total cost of ownership.
Product Information
Extended Description
7BVEL11304A ABB: General Purpose Motor 0.5 Hp 115 V (VEL11304A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1725RPM,1PH,60HZ,56C,3424LC,OP
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEL11304A
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYH551: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEL11304A
Gross Volume
2110.969 in³
Gross Weight
32 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.5HP,1725RPM,1PH,60HZ,56C,3424LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (VEL11304A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
94 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
76.20 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: Dual voltage 115/230 V operation with 1 phase and 60 Hz frequency. Business Impact: Simplifies panel design and wiring, reducing installation time and the risk of using incorrect voltage settings. Application: Small- to mid-size conveyors or pumps in manufacturing environments where power supply varies by site. Feature: Open enclosure with 56C frame and C-Face mounting. Business Impact: Maximizes cooling and provides versatile mounting options, lowering enclosure costs and facilitating retrofits. Application: General purpose drives in open industrial spaces, where airflow is a design advantage and maintenance access is important. Feature: 0.5 HP, 1725 RPM, synchronous speed 1800 rpm, NEMA design N. Business Impact: Right-sized power for rotary equipment with predictable start/stop behavior, improving process control and energy planning. Application: Lightweight machine tools and drive belts in automation lines requiring steady torque. Feature: High efficiency and power factor (PF 0.94, efficiency 76.2%). Business Impact: Reduces energy consumption and utility demand charges, enhancing operating cost savings over the motor’s life. Application: Continuous-duty applications in open environments where energy efficiency matters. Feature: Bearing 6203 ball bearings, insulation class F. Business Impact: Longer bearing life and better insulation performance under typical plant temperatures, reducing maintenance intervals. Application: Harsh factory floors with occasional heat load when mounted on a fixed base. Feature: Stocked at multiple warehouses with 0 day lead time; warranty terms with return policy. Business Impact: Improves supply chain responsiveness and after-sales support, lowering downtime waiting periods. Application: OEM procurement and MRO teams needing rapid replacement parts and clear warranty paths.
Get a Quick Quote for a ABB 7BVEL11304A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEL11304A?
Enquire Now
FAQs
Yes. The VEL11304A is a dual-voltage 115/230V, 60 Hz single-phase motor with a 56C frame and C-Face mounting, enabling straightforward replacement in many standard machines without rewiring the control panel.
Key specs include 0.5 HP output, 1725 RPM (with a 1800 RPM synchronous reference), PF 0.94, and efficiency around 76.2%. Starting is Direct On Line, suitable for simple drive integration in open environments.
Yes. The open enclosure and 56C frame are ideal for general purpose, light-duty industrial applications such as conveyors and small pumps where ambient temperatures are within 40 °C and airflow is adequate.
The VEL11304A carries UL/UR Energy certification and complies with NEMA standards, which supports regulation adherence and safer, proven performance in US-based facilities.
This motor is stocked at multiple warehouses with zero-day lead times, reducing downtime and replacement costs. Warranty terms require returns for warranty claims, which helps minimize long-term maintenance expenses and maximize uptime.
