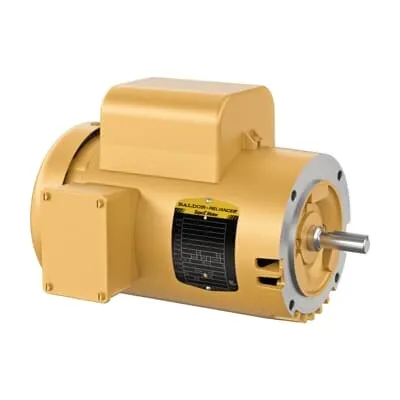

ABB 7BVEL11309 General Purpose Motor - NEMA Open 56C
Part Number: 7BVEL11309
Quick Summary
General purpose motor delivers reliable 1 HP power for open-frame, single-phase applications like conveyors and pumps. This ABB model helps minimize downtime by stocking at multiple warehouses with a 0 day lead time. It aligns with NEMA standards and carries C-UR-US ENERGY certification, supporting regulatory compliance and safer maintenance. With 115/230 V, 60 Hz operation, it provides consistent performance in compact equipment while offering straightforward installation and service. Choosing this motor yields predictable uptime, easy sourcing, and a solid foundation for light industrial automation projects.
Product Information
Extended Description
7BVEL11309 ABB: General Purpose Motor 1 Hp 115 V (VEL11309)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3480RPM,1PH,60HZ,56C,3524LC,OPE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEL11309
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE2891: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEL11309
Gross Volume
2110.969 in³
Gross Weight
43 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
1HP,3480RPM,1PH,60HZ,56C,3524LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 1 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (VEL11309)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
99 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
43 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.8 A | 3.9 A
Rated Efficiency
82 %
Rated Speed
3480 r/min
Replaced Product ID (OLD)
7B35E2891N672G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 1 HP, single-phase, 60 Hz operation with a rated speed of 3480 r/min (3600 r/min synchronous). Business Impact: Delivers adequate starting torque for light-duty loads while keeping energy use efficient, supporting reliable throughput in conveyors, pumps, and fans. Application: Ideal for compact line equipment requiring dependable start-up in 115/230 V systems. Feature: 56C frame with C-face mounting and open enclosure. Business Impact: Simplifies installation and retrofit projects, reduces enclosure footprint, and eases access for maintenance. Application: Suitable for horizontal mounting in open-system machines with flexible belt or shaft alignment. Feature: Direct On Line starting and 1-phase design. Business Impact: Eliminates need for costly soft starters on straightforward loads, lowering initial capex and enabling rapid commissioning. Application: Suitable for non-variable speed drives in routine conveyor or pump assemblies. Feature: Insulation class B, 40 °C ambient, and robust bearings (6205 | Ball; 6203 | Ball). Business Impact: Improves longevity in typical workshop temperatures, reduces vibration, and extends service intervals. Application: Reliable for continuous operation in manufacturing floors with moderate ambient conditions. Feature: Service Factor 1.25, 82% rated efficiency, and 7.8 A | 3.9 A rated currents. Business Impact: Balances performance with energy efficiency, supports predictable energy costs, and minimizes drivetrain losses. Application: Drives light loads with consistent efficiency for energy-conscious plants. Feature: Footless base, 16.5 in length, 11.125 in height, 11.5 in width with 0.63 in shaft diameter. Business Impact: Facilitates compact footprint integration and straightforward shaft alignment in custom housings. Application: Compatible with small-form equipment where space is at a premium.
