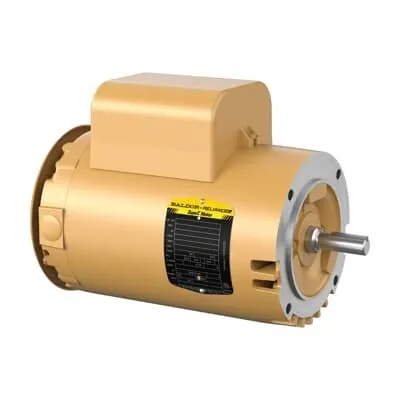

ABB 7BVEL11318A General Purpose Motor - C-UR-US ENERGY Certified
Part Number: 7BVEL11318A
Quick Summary
ABB 7BVEL11318A General Purpose Motor drives general‑purpose machinery with a reliable 1 HP, 115 V single‑phase supply for open‑frame equipment. This motor aligns with 56C frames and C‑Face mounting, enabling quick retrofits and straightforward wiring. Engineers frequently face torque mismatches, enclosure constraints, and long lead times; this model reduces those risks with open enclosure, 60 Hz operation, and broad stock availability. It adheres to NEMA design guidelines and carries energy certification (C‑UR US ENERGY), supporting compliance and efficiency goals. The combination of in‑stock warehouses and 0‑day lead time delivers faster procurement for production lines, while maintaining durable bearings and robust insulation. Ideal for conveyors, pumps, and general industrial machinery.
Product Information
Extended Description
7BVEL11318A ABB: General Purpose Motor 1 Hp 115 V (VEL11318A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,1PH,60HZ,56C,3528LC,OPE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEL11318A
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYH993: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEL11318A
Gross Volume
2110.969 in³
Gross Weight
44 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
B
Invoice Description
1HP,1750RPM,1PH,60HZ,56C,3528LC,OPEN,F1
Made To Order
No
Medium Description
General Purpose 1PH Open, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (VEL11318A)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
93 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
44 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
82.60 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 56C frame with C-Face mounting and open enclosure. Business impact: simplifies installation and retrofits, supports versatile horizontal mounting in constrained spaces. Application: conveyors, pumps, and general equipment in open industrial environments. Feature: 1 HP output with 115/230 V, 60 Hz, 1-phase power. Business impact: enables flexible power sourcing and straightforward electrical integration, reducing wiring complexity and inventory variety. Application: retrofit projects and new lines in manufacturing. Feature: Efficiency 82.60% and Power Factor 0.93. Business impact: lower energy consumption and improved power reliability, reducing operating costs over the motor’s life. Application: continuous‑duty applications like conveyor drives and pump stations. Feature: Service Factor 1.15 and Synchronous/Rated Speed of 1800/1750 r/min. Business impact: dependable performance under moderate overloads and precise speed control for process equipment. Application: single‑phase, light‑to‑medium duty automation tasks. Feature: Durable build – Insulation Class B, Bearing 6205 Ball, Shaft 0.63 in. Business impact: longer service life in moderate ambient temperatures with predictable maintenance. Application: industrial motors exposed to standard workshop conditions. Feature: Availability and support – 0 day lead time, stock at multiple warehouses, warranty terms. Business impact: minimizes downtime, accelerates procurement, and supports rapid project deployment. Application: OEMs and integrators sourcing replacement motors for critical lines.
Get a Quick Quote for a ABB 7BVEL11318A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEL11318A?
Enquire Now
FAQs
The 7BVEL11318A uses a 56C frame with C-Face mounting and an OPEN enclosure, designed for horizontal installation. Wire to 115V or 230V single‑phase supply (60 Hz) and use a direct‑on‑line start for simple startup. Its footless base allows flexible alignment with belts or conveyors, and the open enclosure simplifies cooling and service access.
Key specs include 1 HP output, voltage 115/230 V, 60 Hz, 1 phase, frame 56C, speed 1750 r/min (synchronous 1800 r/min), PF 0.93, and efficiency 82.60%. Duty is continuous with a service factor of 1.15, making it suitable for steady operation in light to medium industrial loads.
Yes. The motor is rated for continuous duty, features a 56C frame, C-Face mounting, and 1PH operation, making it a solid replacement for common open‑frame conveyor and pump drives. Its 0 day lead time and stock availability further support uptime on production lines.
This motor adheres to NEMA design standards and carries energy certification (C‑UR US ENERGY). These certifications support compliance in industrial environments and help meet energy efficiency programs and installation codes.
With bearings rated for standard life (6205 Ball) and insulation class B, maintenance remains straightforward. The product is stocked at multiple warehouses with 0‑day lead time, reducing downtime, while warranty terms require returned units if a fault occurs within coverage.
