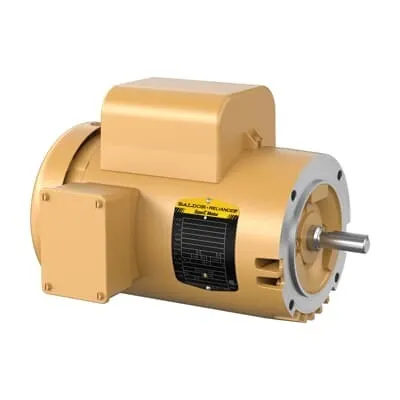

ABB VEL11319 General Purpose Motor - NEMA Design L
Part Number: 7BVEL11319
Quick Summary
ABB VEL11319 General Purpose Motor is a 1.5 HP single-phase motor ideal for general-purpose drives, conveyors, pumps, and fans in light industrial applications. Its compact 56C frame with C-face mounting enables quick installation and flexible alignment in tight spaces, reducing commissioning time. Designed for reliable operation at 60 Hz and 115/230 V, the unit supports open, non-sheaved configurations with a rugged ODTF enclosure and durable 6205/6203 bearings. With stock available across multiple warehouses and a 0 day lead time, maintenance planning becomes simpler and downtime is minimized. This combination of accessibility, performance, and predictable delivery helps procurement teams optimize inventory and avoid production interrupts.
Product Information
Extended Description
7BVEL11319 ABB: General Purpose Motor 1.5 Hp 115 V (VEL11319)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,56C,3536LC,O
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEL11319
Certification Agency
C UR US ENERGY
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE019: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard
Electrical Data
Enclosure Type
ODTF
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEL11319
Gross Volume
3496.049 in³
Gross Weight
59 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,56C,3536LC,ODTF,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, ODTF Enclosure, 115/230 V, 60 Hz (VEL11319)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
59 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.9 A | 6.4 A
Rated Efficiency
83.80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35E019G129
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, ODTF, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 1.5 HP, 115/230 V single-phase design delivers consistent torque for demanding but moderate-load tasks, improving line efficiency and reducing motor cycling. This translates to lower energy waste and steadier process speeds in fans, pumps, and small conveyors. Feature → Application: Frame size 56C and C-face mounting provide a compact footprint and flexible mounting options, enabling faster on-site installation and easier alignment with existing equipment. This reduces installation time and total cost of ownership during retrofits or new line builds. Feature → Application: ODTF enclosure with 40 °C ambient tolerance supports harsher shop-floor environments while maintaining electrical safety, aiding compliance with plant-wide safety policies. Feature → Application: Direct On Line starting (DOL) simplifies integration with soft starters or drives when needed, cutting BOM complexity and enabling straightforward control logic for start/stop sequences. Feature → Application: 1-phase, 60 Hz operation with 115/230 V rating supports common industrial power layouts in North American facilities, reducing the need for step-down transformers and streamlining procurement. Feature → Application: NEMA Design L and 4-pole, 1725 r/min output offer reliable performance for continuous-duty applications like pumps and fans, delivering predictable speed-torque profiles and extended motor life. Feature → Application: 56C frame with a 0.63 in shaft diameter and standard bearings (6205/6203) support durability and easier replacement during maintenance cycles, reducing downtime and spare parts costs. Feature → Application: Stocked at multiple warehouses (US, China, etc.) and 0 day lead time improve supply chain resilience, enabling faster replenishment and minimized production delays. Feature → Application: High-rated current (11.9 A / 6.4 A) and 83.8% efficiency indicate strong electrical performance with reduced thermal load, contributing to energy savings over the motor’s life. This is particularly relevant for continuous-duty installations in automated lines.
Get a Quick Quote for a ABB 7BVEL11319
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEL11319?
Enquire Now
FAQs
The motor uses a 56C frame with C-face mounting, offering horizontal mounting orientation (F1) and compatibility with standard open-frame installations in light industrial equipment. This simplifies retrofits and aligns with common drive and gearbox interfaces.
It is a 1-phase, 115 V / 230 V motor rated for 60 Hz operation, delivering 1.5 HP at 1725 r/min with a 4-pole configuration. Insulation is Class F, and it operates in ambient up to 40 °C with OD TF enclosure, suitable for continuous duty in typical plant environments.
Yes. With a continuous-duty rating and a service factor of 1.15, this motor maintains reliable performance in steady-state operation, pumps, fans, and conveyors, reducing wear and downtime when compared to higher-turndown alternatives.
The motor carries cURus safety recognition under the listed certification agencies, along with NEMA design L compliance. These certifications support safety and reliability in North American electrical installations and help with regulatory alignment.
Lead time is 0 days for stocked variants, with multiple warehouses including US and international sites. This enables rapid fulfillment, minimizing production downtime and supporting just-in-time procurement strategies.
