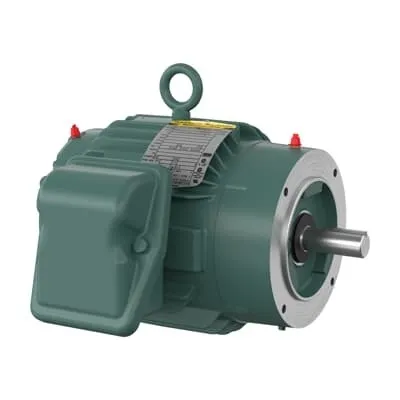

ABB VENCP83581T-4 IEEE 841 Severe Duty Motor
Part Number: 7BVENCP83581T-4
Quick Summary
IEEE 841 Severe Duty Motor delivers rugged power for demanding industrial equipment such as pumps and conveyors. When downtime costs rise, reliability and long bearing life become strategic priorities. This ABB VENCP83581T-4 model carries CSA US, CSA EEV, UR certification along with NEMA Premium efficiency, and combines TEFC and TENV enclosure to withstand harsh environments. With a 1 HP rating at 460 V and a 143TC frame, it optimizes performance while reducing energy waste. Stocked across multiple warehouses (USA, Germany, China) and available for rapid fulfillment, it supports quick replacements and improved uptime for critical industrial processes.
Product Information
Extended Description
7BVENCP83581T-4 ABB: Severe Duty Motor 1 Hp 460 V (VENCP83581T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1775RPM,3PH,60HZ,143TC,0524M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VENCP83581T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYF158: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VENCP83581T-4
Gross Volume
3496.049 in³
Gross Weight
63 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA C Face
Insulation Class
F
Invoice Description
1HP,1775RPM,3PH,60HZ,143TC,0524M,TENV,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 1 HP, 1800 RPM, Frame Size 143Tc, Standard Mounting, 3 Phase, TENV Enclosure, 460 V, 60 Hz (VENCP83581T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
72 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
63 lb
Product Net Width
13.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
1.5 A
Rated Efficiency
87.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B05F158X611G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, Standard, 3 PH, TENV, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T4
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
460 V
Feature → Business Impact → Application: The IEEE 841 Severe Duty construction empowers the motor to withstand demanding duty cycles typical in mining, aggregate handling, and process industries, delivering longer service life and lower maintenance intervals. This translates to lower total cost of ownership and higher asset availability for continuous production lines. Feature → Business Impact → Application: 1 HP, 460 V, 3-phase operation with 60 Hz frequency ensures seamless integration with standard plant power rails and drives control systems, reducing installation complexity and enabling quicker line commissioning for conveyors, pumps, and fans. Feature → Business Impact → Application: TEFC enclosure and TENV insulation class offer robust protection in damp, dirty, or high-temperature facilities, improving reliability in chemical plants, paper mills, and metalworking shops. Feature → Business Impact → Application: Regreasable bearings (6205, Ball) and grease lubrication provide predictable maintenance intervals, extending bearing life and minimizing unexpected downtime in continuous-process operations. Feature → Business Impact → Application: Premium efficiency (87.50%) and a 1.15 service factor deliver energy savings and reliable overload tolerance, supporting cost-per-ton reductions in material handling and processing tasks. Feature → Business Impact → Application: Frame size 143TC with footless base and horizontal F1 mounting simplifies installation and retrofits in existing equipment, reducing retrofit risk and enabling straightforward alignment with standard mounting patterns in OEM integrations. Feature → Business Impact → Application: Direct-on-line starting and a 1800 rpm synchronous speed offer straightforward start-up behavior for applications like packaging lines and filtration systems, avoiding complex soft-start requirements in well-controlled environments. These design choices collectively support improved uptime, regulatory compliance (NEMA, CSA, UL), and reduced maintenance overhead across diverse industries.
