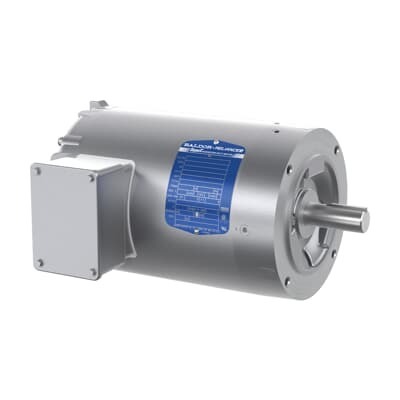

ABB 7BVESWDM3546T-5 Washdown Motor - 1HP 575V IE3 Premium
Part Number: 7BVESWDM3546T-5
Quick Summary
ABB 7BVESWDM3546T-5 is a washdown motor designed for rugged, sanitary applications in food and beverage processing. It addresses the challenges of corrosion, frequent washdowns, and downtime with a stainless steel frame and a TENV enclosure engineered for harsh environments. The design aligns with critical certifications and standards, including IE3 premium efficiency, NEMA Design B, and listings under CSA, CSA EEV, and UR, ensuring compliance and reliable performance. The combination of 1 HP output, 575 V three-phase operation, and a compact 143TC frame supports efficient integration into conveyors, pumps, and mixers. Stock availability across multiple warehouses and 0-day lead times translate to faster procurement and improved project ROI, even during upgrades.
Product Information
Extended Description
7BVESWDM3546T-5 ABB: Washdown Motor 1 Hp 575 V (VESWDM3546T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1775RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VESWDM3546T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Global Commercial Alias
VESWDM3546T-5
Gross Weight
39 lb
Insulation Class
F
Invoice Description
1HP,1775RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Medium Description
Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, (VESWDM3546T-5)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
WD - Paint-Free
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
39 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.2 A
Rated Efficiency
85.50 %
Rated Speed
1745 r/min
Replaced Product ID (OLD)
7B35SS620G198G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
Frame Size 143Tc, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature → Business Impact → Application: The 1 HP, 575 V three-phase powertrain delivers robust torque and reliable starting characteristics for conveyors and pumps in sanitary facilities, enabling consistent throughput with minimal electrical noise. This directly reduces downtime and maintenance costs while ensuring energy-efficient operation via IE3 premium efficiency; the result is lower lifecycle costs and improved uptime in high-demand processes. The stainless steel frame paired with a TENV enclosure provides corrosion resistance and washdown compatibility, which extends motor life in moisture-rich environments and simplifies cleaning cycles in food processing lines. The C-Face drive end flange and horizontal mounting (F1) simplify retrofit and replacement projects, reducing installation time and risk during upgrades. With a 143TC frame and 0.88 in shaft diameter, compatibility with standard belt and pulley systems is maintained, supporting easy integration into existing line layouts. Direct On Line starting minimizes control complexity and reduces soft-start hardware requirements, improving overall plant reliability. Industry contexts like beverage packaging, pharmaceutical mixers, and meat/poultry processing benefit from these design choices by achieving faster ROI, improved cleanliness, and predictable performance under continuous duty.
Get a Quick Quote for a ABB 7BVESWDM3546T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVESWDM3546T-5?
Enquire Now
FAQs
Yes. The unit features a 143TC frame, drive end flange C-Face, and horizontal mounting (F1), which aligns with common belt/pulley assemblies and existing baselines. It is designed for direct replacement in compatible lines and offers straightforward alignment during retrofits, reducing commissioning time and downtime.
The motor provides 1 HP output at 575 V in a 3-phase configuration, rated for 1745 r/min with 4 poles and a synchronous speed of 1800 r/min. It operates with an estimated rated current of 1.2 A and carries IE3 premium efficiency in a NEMA B design, offering improved energy performance and lower operating costs in continuous-duty applications.
Best suited for sanitary applications like food and beverage processing, beverage conveyors, pharmaceutical mixers, and packaging lines, where washdown capability and corrosion resistance are critical. The stainless steel frame and TENV enclosure support frequent cleaning cycles and exposure to washdown environments without compromising performance.
This ABB motor aligns with IE3 premium efficiency standards and NEMA Design B characteristics. It carries CSA, CSA EEV, and UR listings for regulatory compliance, which helps streamline procurement for regulated industries and supports safer, standards-compliant operation.
The motor is stocked across multiple warehouses with 0-day lead times, enabling rapid sourcing and installation. Its stainless frame and TENV enclosure minimize maintenance in washdown environments, while direct-on-line starting reduces control hardware requirements and improves uptime, delivering faster ROI on upgrades and replacements.
