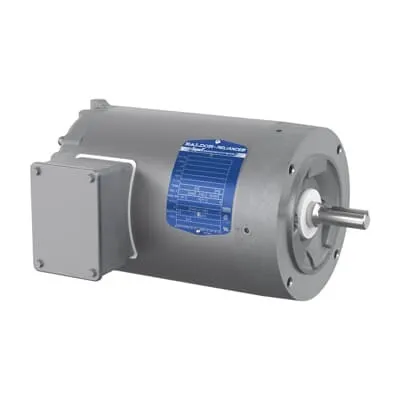

ABB 7BVESWDM3554 Washdown Motor - IE3 Premium
Part Number: 7BVESWDM3554
Quick Summary
Washdown motor from ABB 7BVESWDM3554 delivers 1.5 HP reliability for sanitary, food-processing environments. The design targets common pain points of washdown applications: corrosion risk, frequent cleaning cycles, and downtime due to enclosure failures. With a TE designation and a stainless steel frame in a TENV enclosure, the motor stands up to harsh washdowns while meeting 60 Hz, 230/460 V three-phase requirements. It also carries NEMA compliance and CSA/UR certifications, supporting global procurement and warranty processes. By choosing this model, buyers gain predictable performance, energy efficiency, and easier installation, delivering lower total cost of ownership in continuous operation lines such as conveyors, mixers, and pumps.
Product Information
Extended Description
7BVESWDM3554 ABB: Washdown Motor 1.5 Hp 230 V (VESWDM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VESWDM3554
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYS617
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VESWDM3554
Gross Volume
2110.969 inÂł
Gross Weight
47 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TENV,F1
Made To Order
No
Medium Description
Paint-Free Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VESWDM3554)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
47 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 1.5 HP output with 1770 r/min rating provides adequate torque for conveyors, pumps, and mixers while keeping energy use efficient, reducing operator load and heat generation in continuous-run equipment. Application: packaging lines, washdown conveyors in food & beverage facilities. Feature → Business Impact → Application: 3-phase 60 Hz operation at 230/460 V offers flexible power compatibility, enabling simple integration across global plants and reducing the need for voltage conversion or transformers. Application: international manufacturing environments with mixed electrical infrastructure. Feature → Business Impact → Application: 56C frame with C-face mounting and horizontal orientation plus a footless base simplifies alignment and mounting, cutting installation time and vibration-related downtime. Application: belt conveyors, dosing pumps, and compact drive packages in tight line layouts. Feature → Business Impact → Application: TENV enclosure and stainless steel frame deliver corrosion resistance in washdown cycles, extending service life and lowering maintenance costs. Application: food processing, beverage lines, pharma packaging. Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption during long run hours, lowering operating costs and helping you meet sustainability targets. Application: continuous-duty conveyors, mixers, and processing equipment. Feature → Business Impact → Application: CSA/UR certifications and NEMA alignment reassure compliance and simplify procurement across North America and beyond, while Direct On Line starting minimizes startup components. Application: regulated manufacturing environments with strict supplier qualification.
