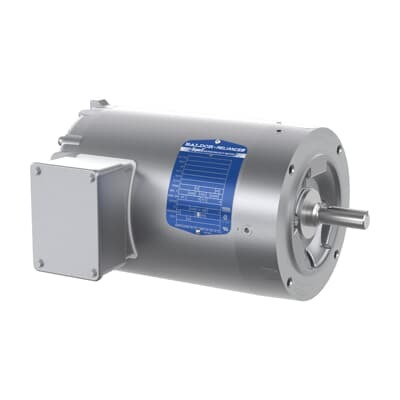

ABB 7BVESWDM3554-5 Washdown Motor - IE3 Premium
Part Number: 7BVESWDM3554-5
Quick Summary
Washdown motor ABB 7BVESWDM3554-5 delivers reliable, corrosion-resistant performance for hygienic environments such as food processing and beverage lines where washdowns are routine. This 1.50 HP, 575 V three-phase drive is engineered to withstand frequent power washing and aggressive cleaners without sacrificing efficiency. By combining a stainless steel frame with TE-face mounting and a NEMA B design, it minimizes corrosion risk while simplifying maintenance. The unit uses a TENV enclosure to protect windings in high-humidity spaces and meets IE3 Premium Efficiency standards for energy savings. For procurement teams, the motor offers US-origin components, clear stock status, and certifications (CSA, CSA EEV, UR) that support regulatory compliance and supplier diversity. In practice, this results in lower energy costs, longer service intervals, and improved uptime on demanding production lines.
Product Information
Extended Description
7BVESWDM3554-5 ABB: Washdown Motor 1.50 Hp 575 V (VESWDM3554-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VESWDM3554-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Global Commercial Alias
VESWDM3554-5
Gross Weight
57 lb
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56C,3530M,TENV,F1
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, (VESWDM3554-5)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
76 %
Product Name
WD - Paint-Free
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
57 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.7 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B35S617G195G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature: 1.50 HP at 575 V three-phase with a 60 Hz rating. Business Impact: Delivers consistent torque and reliable start-up across standard industrial loads, reducing startup shocks and improving process stability. Application: Conveyors and pumps in washdown zones where precise control and robust performance are required. Feature: IE3 Premium Efficiency rating. Business Impact: Lower operating costs through reduced energy consumption and heat generation, extending motor life and lowering total cost of ownership. Application: Long-running process lines in packaging and processing facilities seeking energy efficiency compliance. Feature: Enclosure Type TENV with stainless steel frame. Business Impact: Enhanced protection against water spray, humidity, and cleaning chemicals, minimizing corrosion and maintenance downtime. Application: Food & beverage, pharmaceutical, and other hygiene-critical lines requiring durable construction. Feature: Frame Size 56C with C-Face mounting and horizontal orientation. Business Impact: Simplified retrofit and installation compatibility with standard equipment footprints, reducing commissioning time and inventory variety. Application: Upgrades on legacy equipment and new line integrations across OEMs. Feature: Direct On Line (DOL) starting and 0-day lead time stock. Business Impact: Fast commissioning, reduced electrical complexity, and immediate availability to minimize line downtime. Application: OEM assemblies and maintenance projects where quick replacement is essential. Industry context: With 4 poles, 3 phases, and a 56C stainless frame, the motor aligns with high-usage, high-cleanliness facilities, delivering predictable performance in challenging environments and supporting lean manufacturing goals.
Get a Quick Quote for a ABB 7BVESWDM3554-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVESWDM3554-5?
Enquire Now
FAQs
The motor uses a C-Face drive end flange with horizontal mounting orientation (F1) and a TE enclosure configuration (TENV), providing a robust, seal-friendly design for hygienic environments.
Yes. It features a TENV enclosure and a stainless steel frame rated for aggressive cleaning, with a 40 °C ambient temperature rating to handle typical washdown conditions while maintaining reliability.
The motor operates at 575 V, 3-phase, 60 Hz, with a rated current of 1.7 A, output power of 1.50 HP, and a rated speed of 1755 r/min (synchronous 1800 r/min).
The unit is listed with CSA, CSA EEV, and UR certifications, supporting regulatory compliance and global sourcing requirements.
Lead time is listed as 0 day, with stock available across multiple warehouses, enabling fast procurement and reduced downtime when replacing existing equipment.
