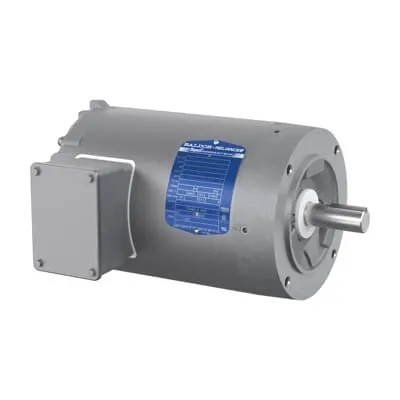

ABB 7BVESWDM3554T Washdown Motor - IE3 Premium TENV
Part Number: 7BVESWDM3554T
Quick Summary
Washdown motor ABB 7BVESWDM3554T delivers reliable 1.5 HP performance for hygienic, washdown environments. In harsh facilities, corrosion resistance and seal integrity are constant maintenance drivers. It meets IE3 Premium efficiency, NEMA Design B, and a TENV enclosure, ensuring compliance and long service life. With a stainless steel frame, 145TC size, and 60 Hz operation, this motor offers plug‑and‑play compatibility and lower total cost of ownership for food processing, beverage, and pharmaceutical applications.
Product Information
Extended Description
7BVESWDM3554T ABB: Washdown Motor 1.5 Hp 230 V (VESWDM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VESWDM3554T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS620
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VESWDM3554T
Gross Volume
2110.969 inÂł
Gross Weight
49 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145TC,3530M,TENV
Made To Order
No
Medium Description
Paint-Free Washdown, 1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VESWDM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
49 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Paint-Free Washdown design with a stainless steel frame delivers easy cleaning and superior corrosion resistance, reducing sanitation downtime and chemical usage in high-hygiene environments. The business impact is lower maintenance costs and higher equipment availability on critical production lines, such as conveyors and pumps in the food and beverage sector. This motor also features C-Face mounting on a 145TC frame with horizontal orientation, enabling straightforward installation and faster changeovers, which translates to reduced downtime and improved line uptime in continuous processes. With 60 Hz operation and a 1.5 HP rating, this 3-phase drive supports reliable torque at standard industrial speeds, helping you meet production targets while maintaining energy efficiency. The IE3 Premium efficiency rating further lowers operating costs and improves power factor in facilities prioritizing energy optimization. The enclosure is TENV, protecting internal components in washdown cycles and simplifying cleaning routines, which lowers total cost of ownership over the motor’s life. Stocked at multiple warehouses, the motor is readily available for just-in-time procurement, minimizing project delays and inventory risk. The design also leverages a stainless steel housing to resist corrosion in aggressive cleaning regimes, aligning with high-demand hygiene standards in pharma and dairy lines.
