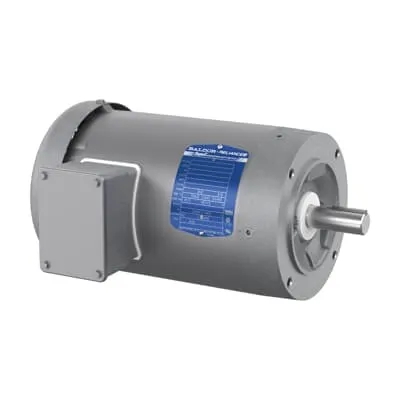

ABB 7BVESWDM3558T Washdown Motor - CSA/EEV/UR Certified
Part Number: 7BVESWDM3558T
Quick Summary
Washdown motor ABB 7BVESWDM3558T delivers reliable 2 HP performance in demanding, moisture-prone environments such as food processing, packaging lines, and beverage systems. This design emphasizes cleanliness, corrosion resistance, and straightforward maintenance to minimize downtime in sanitary facilities. Key certifications and design features—CSA, CSA EEV, and UR—underscore compliance and safe operation across North American markets. The 230/460 V, 60 Hz three-phase configuration paired with a TEFC enclosure and stainless steel frame provides robust protection against washdown liquids and cleaning agents. For system integrators and OEMs, the combination of high reliability, stock availability, and compatibility with standard 145TC components translates into accelerated project timelines and predictable performance.
Product Information
Extended Description
7BVESWDM3558T ABB: Washdown Motor 2 Hp 230 V (VESWDM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,145TC,3530M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VESWDM3558T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYSS623
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VESWDM3558T
Gross Volume
3496.049 inÂł
Gross Weight
55 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,1765RPM,3PH,60HZ,145TC,3530M,TEFC,N
Made To Order
No
Medium Description
Paint-Free Washdown, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VESWDM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
76 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
55 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
88.50 %
Rated Speed
1755 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The Paint-Free Washdown and stainless steel frame deliver superior corrosion resistance, reducing paint failure and maintenance costs in hygiene-critical lines, which translates to lower downtime in food processing equipment and beverage packaging systems. Application: Suitable for washdown zones in dairy, meat, and pharmaceutical environments where cleanliness is non-negotiable. Feature → Business Impact → Application: TEFC enclosure plus C-face mounting provides durable protection in harsh environments, enabling faster installation and reliable mounting in vertical and horizontal orientations for conveyors and mixers. Application: Ideal for mixed-material handling and packaging machines that require robust, maintenance-friendly motors. Feature → Business Impact → Application: 2 HP, 1755 r/min (rated 1755), 3-phase, 60 Hz performance delivers steady torque with smooth operation, reducing cycle times and energy use. Application: Ideal for fans, pumps, blowers, and small conveyors in compact automation cells. Feature → Business Impact → Application: 145TC frame, 0.88 in shaft diameter, and 1.15 service factor support heavy-duty starts and long service life, minimizing unplanned downtime in continuous-duty lines. Application: Common in process skids and washdown-rated machines. Feature → Business Impact → Application: Premium efficiency rating and insulation class F improve energy performance and reliability in long-running systems, lowering utility costs and enhancing electrical safety margins. Application: Food-grade mixers, washers, and sanitary pumps where efficiency and safety matter. Feature → Business Impact → Application: 230 V / 460 V voltage rating and 3-phase operation ensure broad electrical compatibility and simple integration with existing plant power distribution, shortening installation time. Application: OEM equipment or retrofit projects seeking plug-and-play power. Feature → Business Impact → Application: NEMA Design B, Direct On Line starting, and sealed bearings support predictable startup behavior and low maintenance in wet environments. Application: Industrial conveyors and dosing systems in manufacturing environments with frequent washdowns.
