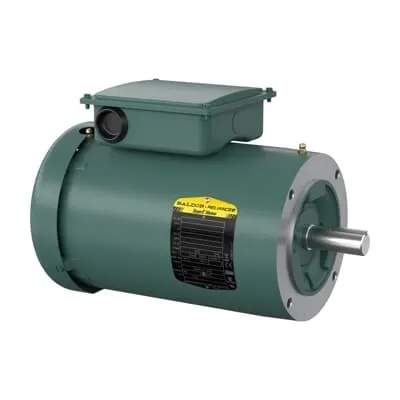

ABB 7BVEUHM3558T-5 Unit Handling - IE3 Premium Efficiency
Part Number: 7BVEUHM3558T-5
Quick Summary
ABB 7BVEUHM3558T-5 Unit Handling motor delivers 2 HP at 575 V for reliable material handling and conveyors in automated lines. Engineers often struggle with balancing uptime, energy costs, and ambient conditions in automated manufacturing. This motor is engineered with IE3 premium efficiency and multiple industry certifications (CE, CSA/EEV, NEMA Premium) to support compliance and long-term performance. Its TEFC enclosure, 145TC frame, and C-face mounting simplify installation in horizontal configurations and belt-driven layouts. With 60 Hz operation and direct-on-line starting, it delivers predictable torque and quick response to load changes. Stocked across US and international warehouses with zero-day lead time, it enables faster procurement and minimizes downtime on critical production lines.
Product Information
Extended Description
7BVEUHM3558T-5 ABB: Unit Handling 2 Hp 575 V (VEUHM3558T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2/1.5KWHP,1764 1/MINRPM,3PH,60HZ,14
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VEUHM3558T-5
Certification Agency
CE | CSA | CSA EEV | IE3 | NEMA_PREMIUM | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYW819
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEUHM3558T-5
Gross Volume
3496.049 in³
Gross Weight
48 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2/1.5KWHP,1764 1/MINRPM,3PH,60HZ,145TC,3
Made To Order
No
Medium Description
Unit Handling, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEUHM3558T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
80 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.15 A
Rated Efficiency
86.50 %
Rated Speed
1764 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → ApplicationIE3 Premium Efficiency: Delivers up to 86.5% efficiency and 0.80 PF, reducing energy consumption and heat in continuous operation. This helps lower total cost of ownership for conveyors, material handling, and packaging lines where motors run at constant loads. Application: longer motor life and lower utility costs in automated assembly lines.TEFC Enclosure with 575 V 3-phase, 60 Hz: Provides robust dust and moisture protection in demanding factory floors, minimizing maintenance cycles. Benefit includes reduced shaft seals wear and longer service intervals, ideal for harsh environments in OEM equipment and automated storage systems. Application: belt-driven conveyors and palletizing stations.C-Face Mounting and 145TC Frame: Simplifies installation and alignment, reducing commissioning time and misalignment risk. The horizontal orientation and footless base enable flexible mounting on compact machinery and retrofit projects. Application: retrofit projects and new unit handling applications where space is constrained.Direct-on-Line Start with 4-pole, 1764 r/min: Enables fast, smooth starting and reliable load acceptance, improving line throughput and reducing geartrain stress. This is especially valuable for packaging and sorting systems requiring rapid acceleration. Application: high-throughput sorters and pick-and-place conveyors.Extensive Availability: Lead time is listed at 0 day with stock at multiple warehouses (US and international), ensuring rapid dispatch and minimal downtime for critical automation projects. Application: plant-wide refreshes and urgent maintenance tasks where uptime is paramount.
