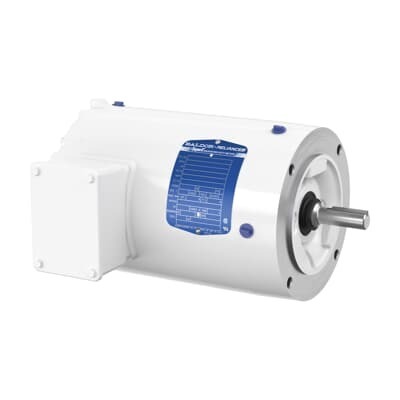

ABB 7BVEWDM3542 Washdown Motor - CSA UR Certified
Part Number: 7BVEWDM3542
Quick Summary
Washdown Motor 7BVEWDM3542 drives reliable, hygienic power for food processing and packaging lines. This 0.75 HP, 1765 rpm, 230/460 V 3-phase motor is designed for frequent washdowns, delivering consistent performance through a durable enclosure and robust 56C frame. Maintenance teams often battle corrosion, heat, and downtime caused by cleaning cycles. With a TENV enclosure rated for up to 40 °C ambient and a compact C-face, 56C footprint, the unit minimizes heat buildup and simplifies installation in crowded equipment areas. Certified for CSA and UR recognition and aligned with NEMA design standards, it supports compliant operation across facilities. For operations seeking available stock, straightforward integration, and predictable lifecycle costs, VEWDM3542 provides a dependable, scalable option.
Product Information
Extended Description
7BVEWDM3542 ABB: Washdown Motor 0.75 Hp 230 V (VEWDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS603
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3542
Gross Volume
2110.969 inÂł
Gross Weight
32 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VEWDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TENV enclosure and 40 °C ambient rating provide protection for motor windings and bearings in washdown environments. Business Impact: Reduces corrosion-related downtime and extends service intervals. Application: Ideal for food processing and pharmaceutical lines with frequent cleaning cycles. The result is more reliable uptime and lower maintenance costs. Feature: 56C frame with C-Face mounting and footless base enables compact installation and flexible mounting. Business Impact: Simplifies retrofits and minimizes space constraints on conveyors and pumps. Application: Quick integration with existing ABB Baldor-Reliance drives and standard conveyor systems. The outcome is faster commissioning and lower installation labor. Feature: 3-phase, 60 Hz operation at 1765 r/min delivers predictable drive performance. Business Impact: Easier drive selection, consistent speed control, and reduced risk of overshoot on load changes. Application: General purpose motor for continuous-duty applications in manufacturing. The benefit is improved process stability and energy efficiency. Feature: Rated at 0.75 HP with 82.50% efficiency and a service factor of 1.25. Business Impact: Lower energy costs, better torque reserves, and higher reliability under peak loads. Application: Hoist, pump, and conveyor drives in washdown zones. The result is tangible operating cost reduction and improved motor longevity. Feature: 230 V / 460 V dual voltage rating and Direct On Line starting. Business Impact: Simplifies electrical design, reduces inventory needs, and enables straightforward integration with existing power infrastructure. Application: Standard industrial sites with mixed voltage supplies. The advantage is faster startup and minimal wiring changes. Feature: Stock accessibility with 0-day lead time and multiple warehouse stocking. Business Impact: Shortens project timelines, reduces emergency procurement risk, and improves maintenance planning. Application: Any line requiring rapid deployment in critical manufacturing environments. The outcome is accelerated time-to-production and reduced downtime.
