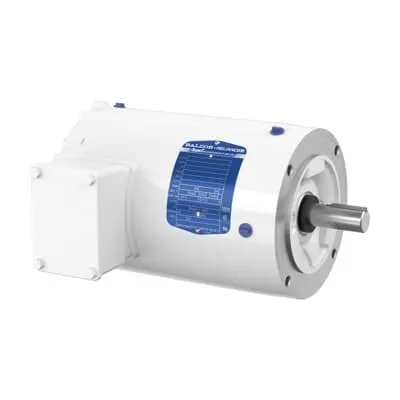

ABB 7BVEWDM3546T Washdown Motor - Premium Efficiency
Part Number: 7BVEWDM3546T
Quick Summary
Washdown motor performance for sanitary environments is what the ABB 7BVEWDM3546T delivers, offering 1 HP at 230/460 V for three-phase 60 Hz systems. This unit is designed to withstand harsh cleaning regimes in food, beverage, and pharmaceutical lines, helping minimize downtime. It carries CSA, CSA EEV, and UR certifications, with a NEMA design B profile and a 40 °C ambient rating to support compliant operation in demanding environments. The motor features a 143TC frame, C-face mounting, and a TENV enclosure for reliable cooling and serviceability. For integrators and maintenance teams, the 7BVEWDM3546T provides straightforward installation, energy efficiency, and predictable lifecycle costs across standard stock levels.
Product Information
Extended Description
7BVEWDM3546T ABB: Washdown Motor 1 Hp 230 V (VEWDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYSS606
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3546T
Gross Volume
2110.969 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VEWDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
143TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
40 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
The washdown-ready enclosure (TENV) paired with a 143TC frame delivers rugged protection against cleaning chemicals while maintaining consistent cooling. This combination reduces corrosion risk and extends motor life, which translates to lower maintenance downtime in food and beverage lines. The C-face mounting and footless base simplify retrofits and new installations, enabling faster project completion and reduced installation costs. Premium efficiency plus a 1.15 service factor delivers tangible energy savings and improved system reliability in conveyors and pumps, decreasing operating costs over the motor’s life. With 230/460 V three-phase and a 60 Hz rating, integration with standard industrial controls and soft starters is straightforward, improving control precision and startup reliability. Certifications (CSA, CSA EEV, UR) and a NEMA design B profile support regulatory compliance and predictable performance in regulated facilities. The insulation Class F and ambient 40 °C rating reassure performance in warm environments, while the 143TC frame enables compatibility with a wide range of mechanicals and couplings. Stock availability across multiple warehouses minimizes downtime for replacement and maintenance planning, and the motor’s direct-on-line starting keeps drive systems simple and cost-effective. Overall, the design supports a robust, scalable solution for sanitary processes with lower total cost of ownership over time.
Get a Quick Quote for a ABB 7BVEWDM3546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEWDM3546T?
Enquire Now
FAQs
This motor uses a 143TC frame with C-face mounting and is described as footless, which supports straightforward retrofits into existing equipment. Its mounting configuration simplifies alignment with conveyors, pumps, and driven equipment while minimizing modification needs.
The motor operates at 1 HP with 230/460 V three-phase supply at 60 Hz. It has a premium efficiency designation, a service factor of 1.15, and insulation class F, delivering reliable performance and energy savings in continuous duty applications.
Ideal for food and beverage, pharmaceutical, and chemical processing lines where frequent washdowns occur. The TENV enclosure and stainless-level cleaning compatibility help maintain hygiene standards while delivering durable motor performance.
The 7BVEWDM3546T carries CSA, CSA EEV, and UR certifications, along with a NEMA design B code. It is rated for a 40 °C ambient temperature and is designed for reliable operation in regulated facilities.
Stocked at multiple warehouses with zero lead time, it enables rapid deployment and reduced downtime. Direct On Line starting and standard stock integration minimize spare parts costs and accelerate maintenance cycles, contributing to a lower total cost of ownership.
