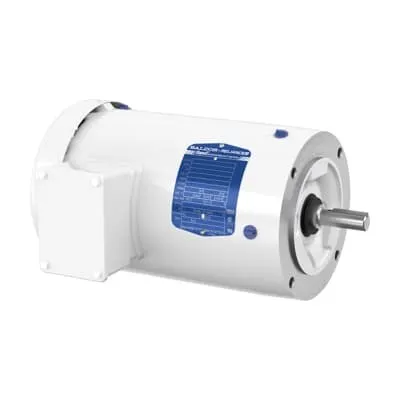

ABB VEWDM3558 Washdown Motor - TEFC, 2 HP 60 Hz
Part Number: 7BVEWDM3558
Quick Summary
Washdown motor ABB VEWDM3558 delivers reliable 2 HP performance for sanitary process lines and packaging equipment. This 3-phase TEFC motor operates at 230/460 V with 60 Hz, designed for washdown environments where cleanliness and corrosion resistance are critical. The challenge for engineers is maintaining uptime while meeting sanitation, energy efficiency, and safety standards. The unit carries CSA, CSA EEV, and UR certifications and aligns with NEMA Premium Efficiency guidelines, helping reduce energy costs and improve reliability. Stocked at multiple warehouses with 0-day lead times, it supports rapid deployment and consistent spare parts. In addition to 60 Hz operation, the 56C frame, C-face mounting, and direct-on-line starting streamline installation and maintenance planning, delivering tangible business value.
Product Information
Extended Description
7BVEWDM3558 ABB: Washdown Motor 2 Hp 230 V (VEWDM3558)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,56C,3528M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3558
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYS596: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3558
Gross Volume
2110.969 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,56C,3528M,TEFC,F1,N
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3558)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
46 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Washdown-ready TEFC enclosure and corrosion-resistant steel frame. Business Impact: Enables reliable operation in harsh cleaning environments, reducing corrosion-related downtime and maintenance costs. Application: Food and beverage conveyors, pharmaceutical processing lines, and sanitary equipment where frequent washdowns are required. Feature: Premium Efficiency with NEMA 12-12 guidance and 86.5% efficiency. Business Impact: Lower energy consumption, reduced operating costs, and improved sustainability metrics. Application: Continuous-duty motor drives in compact footprints across factory floors seeking energy optimization. Feature: 56C frame with C-face mounting and horizontal orientation. Business Impact: Standardized mounting compatibility, faster installation, and easier retrofits with existing gear and belt systems. Application: Replacing aging motors on conveyors and mix tanks without extensive rework. Feature: Dual voltage 230/460 V, 60 Hz, 3-phase. Business Impact: Flexible electrical sourcing and simplified warehouse stocking, enabling cross-site deployment. Application: Plants with mixed-mac/utility power or expansion projects needing uniform spares. Feature: Direct On Line starting and 1760 r/min (4-pole) operation. Business Impact: Simple start-up, reduced control complexity, and faster commissioning. Application: General-purpose drives in washdown lines where quick ramp-up is advantageous. Feature: Stock availability and 0-day lead times across multiple warehouses. Business Impact: Accelerated project timelines and minimized downtime during maintenance cycles. Application: Capital projects and maintenance planning in multi-site operations.
Get a Quick Quote for a ABB 7BVEWDM3558
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEWDM3558?
Enquire Now
FAQs
Yes. The VEWDM3558 is a 3-phase 230/460 V motor with a TEFC enclosure, designed for washdown environments. It supports direct-on-line starting and uses a 56C frame with C-face mounting, enabling straightforward integration into existing lines and quick commissioning.
The motor delivers 2 HP with a rated speed of 1760 r/min (4-pole), 60 Hz, and 3 phases. It uses a 56C frame, has a shaft diameter of 0.63 in, and an insulation class of F. Rated current is approximately 5.6 A (In) and 2.8 A under different voltages.
Ideal for sanitary processing and packaging environments, including food & beverage and pharmaceutical lines. Its washdown-ready design, stainless-cleanability, and NEMA-compliant premium efficiency make it a strong fit for facilities prioritizing uptime, sanitation, and energy efficiency.
It carries CSA, CSA EEV, and UR certifications, with NEMA standards supporting premium efficiency and reliability. These certifications help ensure regulatory compliance and safer operation in regulated industries.
Warranty terms state that warranty returns are required for covered issues. The motor is stocked at multiple warehouses with 0-day lead times, enabling rapid deployment and easier maintenance planning across sites.
