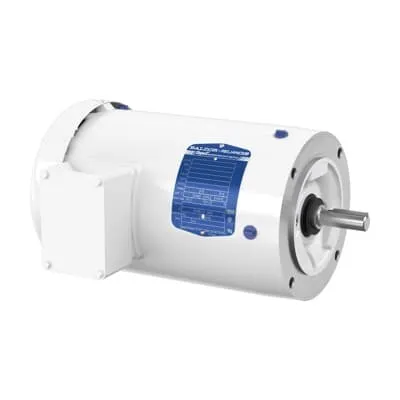

ABB VEWDM3559 Washdown Motor - 3HP TEFC CSA/UR Certified
Part Number: 7BVEWDM3559
Quick Summary
ABB VEWDM3559 washdown motor delivers reliable 3 HP power for hygienic manufacturing lines. In demanding environments, corrosion resistance and easy maintenance are common pain points, making a rugged TEFC solution essential. This motor carries CSA, CSA EEV, and UR certifications, with a NEMA design B baseline and IE3 efficiency to meet contemporary energy standards. With dual voltage 230/460 V, a TEFC enclosure, and a 56C frame, it offers installation flexibility and lower lifecycle costs for food processing, beverage, and pharmaceutical applications. End-user technicians appreciate predictable uptime and simplified spare parts planning across global sites. This product also supports regulatory audits thanks to its robust certification suite.
Product Information
Extended Description
7BVEWDM3559 ABB: Washdown Motor 3 Hp 230 V (VEWDM3559)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,56C,3532M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3559
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYH815
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3559
Gross Volume
3496.049 inÂł
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,56C,3532M,TEFC,F1,N
Made To Order
No
Medium Description
White Washdown, 3 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3559)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35H815Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
3 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
TEFC enclosure provides robust protection in washdown environments, guarding windings from water ingress and chemical exposure. This translates to lower maintenance costs, fewer unplanned shutdowns, and longer motor life in harsh facilities. It is ideal for food processing lines, beverage assembly, and pharmaceutical equipment where frequent cleaning is standard. The 56C frame and C-face mounting offer compatibility with existing conveyors and mixers, simplifying retrofit projects and reducing downtime. Dual voltage 230/460 V, 60 Hz, 3-phase operation enables global installation without rewiring complex control panels, while direct-on-line starting minimizes electrical installation and panel costs. IE3 premium efficiency and a service factor of 1.15 support energy savings and reliable performance under heavy loads. The 6205 ball bearings and 0.63 in shaft diameter provide durability for continuous operation, with NEMA design B characteristics ensuring predictable torque and run life. The motor’s horizontal mounting and 56C frame facilitate straightforward integration with standard industrial gearboxes and couplings.
