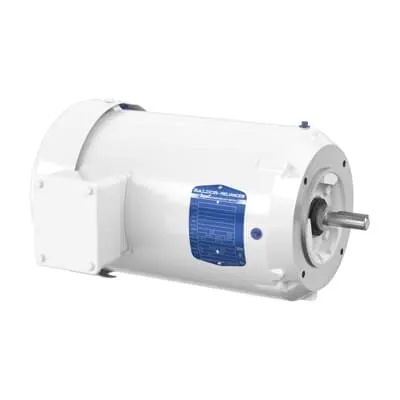

ABB 7BVEWDM3561 Washdown Motor - TEFC 3HP 60Hz
Part Number: 7BVEWDM3561
Quick Summary
Washdown motor 7BVEWDM3561 by ABB delivers robust 3 HP performance for hygienic manufacturing lines. In wet environments, corrosion resistance and reliable washdown compatibility can become costly bottlenecks. It carries CSA, CSA EEV, and UR certifications to support global regulatory compliance. With a 56C frame, TEFC enclosure, dual-voltage 230/460 V operation at 60 Hz, and premium efficiency, it reduces energy costs. This combination supports faster installation, lower maintenance, and scalable procurement for HVAC, packaging, and process lines. Its 73 lb weight signals solid construction suitable for frequent service in busy production facilities.
Product Information
Extended Description
7BVEWDM3561 ABB: Washdown Motor 3 Hp 230 V (VEWDM3561)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,56C,TEFC,F1
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3561
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYN475
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3561
Gross Weight
73 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,56C,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3561)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
White Washdown
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
73 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
3 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure combined with White Washdown construction protects internal components from moisture and cleaning agents. Business Impact: Reduces corrosion risk, extends motor life, and lowers maintenance frequency in sanitary environments. Application: Food and beverage conveyors, washdown pumps, and CIP lines benefit from increased uptime and easier cleaning.Feature: 56C frame with C-Face drive end flange and footless base enables flexible mounting. Business Impact: Simplifies retrofits and new-install integration, saves space, and speeds alignment with gear boxes and couplings. Application: Packaging lines and automated conveyors where compact footprint matters.Feature: Dual voltage 230 V / 460 V and 60 Hz operation. Business Impact: Cuts inventory complexity and simplifies regional deployments, enabling one motor to service multiple sites. Application: Global manufacturing plants and multi-region systems requiring consistent performance.Feature: Premium efficiency (89.50%) and 1.15 service factor. Business Impact: Lowers energy costs over the motor’s life and provides absorbed overhead resilience for starting surges. Application: Continuous-duty applications such as conveyors, mixers, and pumps in washdown environments.Feature: NEMA Design B, direct-on-line starting, and 3-phase, 4-pole configuration. Business Impact: Predictable startup, straightforward control wiring, and reliable torque characteristics. Application: Industrial drives and processing lines requiring robust performance with minimal control complexity.Feature: Robust bearings (6206/6205) and aluminum-free, F insulation class. Business Impact: Enhanced reliability under vibration and frequent washdowns while resisting heat and chemical exposure. Application: High-cycle operations and challenging sanitation routines in dairy, meat, or pharma lines.
