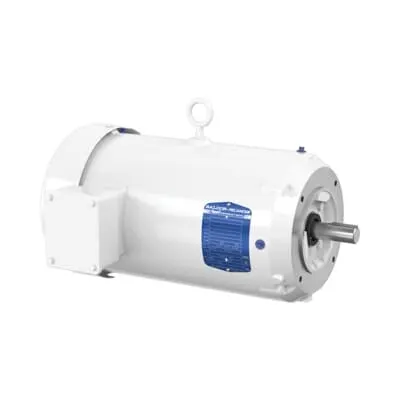

ABB VEWDM3561T Washdown Motor - CSA/EEV/UR Certified
Part Number: 7BVEWDM3561T
Quick Summary
ABB VEWDM3561T washdown motor provides reliable, cleanable power for demanding washdown environments in food processing. This design helps minimize corrosion-related downtime and maintenance costs by combining a white washdown construction with a TEFC enclosure and robust bearings. Key certifications include CSA, CSA EEV, and UR, supporting compliant deployment in North American facilities with strong safety and performance guarantees. At 3 HP, 1760 RPM, and 230/460 V at 60 Hz, it integrates with standard drives and the common 145TC frame, enabling straightforward installation and reliable long-term operation. The result is measurable business value through improved uptime, lower energy use, and simplified procurement for industrial systems.
Product Information
Extended Description
7BVEWDM3561T ABB: Washdown Motor 3 Hp 230 V (VEWDM3561T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,145TC,TEFC,F1
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3561T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYJ495
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3561T
Gross Volume
5274.135 in³
Gross Weight
73 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,145TC,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3561T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
73 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
The TEFC enclosure protects against washdown fluids and dust ingress, reducing maintenance frequency and extending motor life in harsh environments. This translates to lower total cost of ownership while keeping production lines productive in food processing and beverage applications where cleanliness is critical. The 145TC frame with C-face mounting supports horizontal installation and fast integration with existing drives, minimizing downtime during retrofit or new line deployment. Premium efficiency rating delivers tangible energy savings over long operating cycles, improving overall plant reliability and lowering energy costs on high-demand packaging and conveyor runs. The 3-phase, 60 Hz, 230/460 V configuration ensures compatibility with standard industrial power systems and easy VFD integration for precise speed control. A robust NEMA B design, 1760 r/min nominal speed, and a 60-minute duty time provide dependable performance on continuous-duty loads while supporting consistent torque delivery. Availability across multiple warehouses and a 0-day lead time mean rapid procurement to keep projects on schedule. Industry-specific notes confirm suitability for sanitary environments, with strong compatibility for meat, dairy, and pharmaceutical processing lines where washdown practices are routine.
Get a Quick Quote for a ABB 7BVEWDM3561T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEWDM3561T?
Enquire Now
FAQs
Yes. The VEWDM3561T uses a 145TC frame with a C-face mounting configuration and horizontal mounting orientation (F1), which is compatible with common motor bases and drive systems, enabling quick installation and minimal modification.
This motor carries CSA, CSA EEV, and UR certifications, with NEMA standards compliance. These approvals support safe, compliant operation in North American facilities, ease in supplier qualification, and acceptance for regulated food, beverage, and pharmaceutical environments.
The VEWDM3561T is a 3-phase motor rated for 230 V / 460 V at 60 Hz, with 1760 r/min nominal speed and 4 poles. It draws up to 8.4 A (high) / 4.2 A (low) and features a TEFC enclosure suitable for washdown, with insulation class F and ambient capability up to 40 °C.
Yes. It features a TEFC enclosure designed for washdown environments, and its white washdown construction further aids cleaning, corrosion resistance, and long-term reliability on conveyor belts, packaging lines, and other sanitary process equipment.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses, including US and international facilities. This enables rapid procurement and shorter project schedules for both retrofits and new installations.
