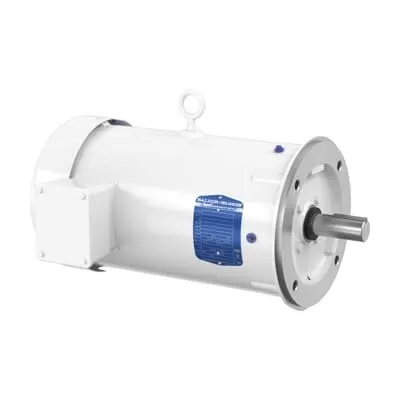

ABB VEWDM3611T Washdown Motor - IE3 Premium Efficiency
Part Number: 7BVEWDM3611T
Quick Summary
ABB VEWDM3611T Washdown Motor is a 3 HP, 230 V three-phase TEFC motor designed for reliable, sanitary operation in washdown environments. This model addresses maintenance and downtime challenges by delivering consistent performance in demanding conditions. It carries CSA, CSA EEV, and UR certifications, reinforcing compliance for U.S. and Canadian installations, while its IE3 premium efficiency helps reduce energy costs on high-duty processing lines. With a rugged 182TC frame, C-face mounting, and 60 Hz compatibility, it integrates seamlessly into existing systems. Stocked availability and straightforward DOL starting support fast deployment, delivering value to food & beverage, pharmaceutical, and other sanitary manufacturing applications.
Product Information
Extended Description
7BVEWDM3611T ABB: Washdown Motor 3 Hp 230 V (VEWDM3611T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182TC,3632M,TE
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3611T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYK187
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3611T
Gross Volume
3496.049 in³
Gross Weight
73 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3611T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
182TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
73 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Washdown-ready TEFC enclosure and steel frame provide robust resistance to moisture and washdowns, reducing corrosion risk and maintenance downtime in sanitary lines. This translates to longer motor life and lower total cost of ownership for beverage processing and hygienic packaging lines. Feature → Business Impact → Application: 3 HP, 230/460 V, 60 Hz three-phase operation coupled with 1760 r/min speed delivers reliable torque for continuous process routines in pump and conveyance tasks, lowering cycle times and energy usage in plant floors. Feature → Business Impact → Application: IE3 premium efficiency and a service factor of 1.15 combine to cut energy bills while maintaining performance under heavy load, ideal for long-running mixers and agitators in dairy, meat processing, and clean-in-place systems. Feature → Business Impact → Application: 182TC frame with C-face mounting simplifies retrofits and new installations into common layouts, enabling fast commissioning and minimal downtime during changeovers in pharmaceutical lines. Feature → Business Impact → Application: Direct On Line starting and 0-day lead times on stocked warehouses minimize startup delays and spare-part inventory costs, supporting lean maintenance programs across scale-up facilities. Feature → Business Impact → Application: CSA, CSA EEV, and UR certifications, along with NEMA design B compliance, provide regulatory confidence for global deployments, ensuring traceability and safer commissioning in regulated environments.
