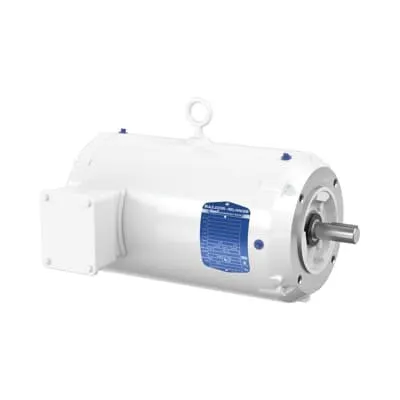

ABB 7BVEWDM3651T Washdown Motor - 3 HP, 230V, 60 Hz, CSA/UR
Part Number: 7BVEWDM3651T
Quick Summary
ABB 7BVEWDM3651T is a washdown motor engineered for sanitary processing lines and packaging applications requiring reliable, clean operation. It delivers 3 HP at 230/460 V with 60 Hz performance to align with standard industrial drives. The design prioritizes hygiene and ease of cleaning, featuring a White Washdown construction and a 145TC frame with C-face mounting for fast, vibration-averse installation. This unit carries essential North American certifications including CSA, CSA EEV, and UR, supporting compliance across regulated environments. With a premium efficiency rating and a robust 1.15 service factor, it reduces energy waste while maintaining torque under load. Stocked in multiple warehouses for quick delivery, it also fits easily into existing automation architectures.
Product Information
Extended Description
7BVEWDM3651T ABB: Washdown Motor 3 Hp 230 V (VEWDM3651T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,145TC,3646M,TE
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3651T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ446
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3651T
Gross Volume
5274.135 in³
Gross Weight
70 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,145TC,3646M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VEWDM3651T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
70 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.2 A | 4.1 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: White Washdown construction and TENV enclosure → Business Impact: Improves sanitation, corrosion resistance, and reliability in food, beverage, and packaging lines → Application: Sanitary manufacturing environments with frequent washdowns. Feature: Dual voltage 230 V / 460 V, 3-phase, 60 Hz → Business Impact: Flexible installation across facilities and compatibility with common VFDs and panel layouts → Application: Industrial automation and OEM integration requiring adaptable power inputs. Feature: 145TC frame, C-face mounting, horizontal orientation → Business Impact: Easy retrofits and precise alignment, reduces installation time and machine downtime → Application: conveyors, mixers, and sanitary process equipment. Feature: Enclosure Type TENV, Insulation Class F, Rated Efficiency 89.50%, Service Factor 1.15 → Business Impact: Longer life, energy savings, and better load tolerance under varying conditions → Application: Continuous duty in demanding production lines. Feature: Direct On Line starting, 3-phase operation, Shaft 0.88 in Ø → Business Impact: Simple startup with broad motor drive compatibility and robust mechanical coupling → Application: New builds and upgrades with standard drive systems. Feature: Weight 70 lb, dimensions 21.625 in L × 16.125 in W × 15.125 in H, Stocked At Warehouses → Business Impact: Predictable space planning and rapid fulfillment to minimize downtime → Application: Global supply chain and fast-turn projects with immediate needs. Feature: Certifications CSA, CSA EEV, UR; Standards: NEMA → Business Impact: Regulatory compliance and safer procurement for North American markets → Application: Food & beverage, pharmaceutical, and regulated manufacturing.
Get a Quick Quote for a ABB 7BVEWDM3651T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVEWDM3651T?
Enquire Now
FAQs
Yes. The motor supports 230 V and 460 V as a 3-phase, 60 Hz design, making it compatible with variable frequency drives and typical industrial electrical distributions found in automated lines.
It uses a TENV enclosure with insulation class F and a white washdown construction, designed for frequent cleaning and resilience in sanitary facilities operating up to 40 °C ambient.
The model carries CSA, CSA EEV, and UR certifications, with standards aligned to NEMA guidelines, supporting safe procurement and compliance in regulated industries.
Plan for C-face mounting in a horizontal orientation on a 145TC frame. Use a footless base where appropriate, and ensure 3-phase connections are wired for DOL start to maximize reliability and minimize drive wear.
With a 89.50% rated efficiency, service factor of 1.15, and F-class insulation, the motor promises reduced energy costs and longer service life, translating to lower maintenance and replacement costs; stock availability further reduces downtime.
