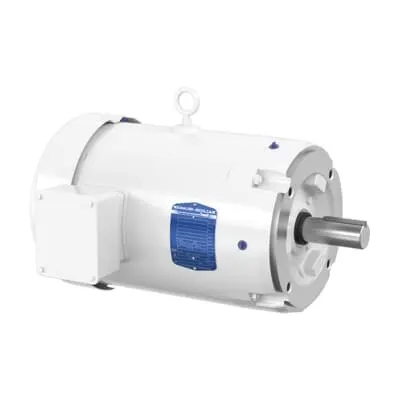

ABB VEWDM3714T Washdown Motor - 10HP CSA EEV UR
Part Number: 7BVEWDM3714T
Quick Summary
The ABB VEWDM3714T washdown motor provides reliable, high-efficiency power for food and beverage processing lines. In washdown environments, corrosion and moisture can shorten motor life and drive up maintenance costs; this model mitigates those risks with a TEFC enclosure, C-face mounting, and a robust 215TC frame. It carries CSA, CSA EEV, and UR certifications, along with IE3 premium efficiency, delivering regulatory compliance and energy savings. Designed for 60 Hz, 230/460 V 3-phase systems, its long-term value comes from global stock, fast lead times, and compatibility with standard spare parts. For engineers and procurement teams, this combination translates to safer operations and lower total cost of ownership.
Product Information
Extended Description
7BVEWDM3714T ABB: Washdown Motor 10 Hp 230 V (VEWDM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TC,3752M,T
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VEWDM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH875
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
VEWDM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TC,3752M,TEFC,F
Made To Order
No
Medium Description
White Washdown, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VEWDM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
White Washdown
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure provides spray and moisture protection, extending motor life in sanitary environments. Business Impact: Reduced maintenance costs and less downtime due to environmental exposure. Application: Food processing lines, beverage bottling, and other washdown-intensive conveyors. Feature: IE3 premium efficiency rating lowers energy consumption and operating costs over the motor’s life. Business Impact: Lower total cost of ownership and improved sustainability metrics. Application: High-demand, continuous-duty processes where energy efficiency is prioritized. Feature: 3-phase, 60 Hz operation at 230/460 V supports standard industrial power systems. Business Impact: Easy integration with existing electrical infrastructure and minimal rework. Application: OEM equipment, packaging lines, and automated assembly cells. Feature: 215TC frame with C-face mounting and 4-pole, 1770 r/min operation. Business Impact: Simple retrofit and reliable speed control for consistent process throughput. Application: Conveyors and mixers requiring standard mounting and predictable performance. Feature: 40 °C ambient rating and robust bearings (6307 ball / 6206 ball) enhance durability in hot plant floors. Business Impact: Higher resilience in factory floors and longer service intervals. Application: Sanitary plants with elevated ambient temperatures. Feature: Certifications (CSA, CSA EEV, UR) assure regulatory compliance and safe operation. Business Impact: Simplified qualification for regulated industries and improved supplier confidence. Application: Food & beverage and other regulated environments. Feature: Stocked At Warehouses and zero lead time messaging support fast commissioning. Business Impact: Shorter downtime and faster project start-ups. Application: Multisite deployments and emergency replacements across regions.
