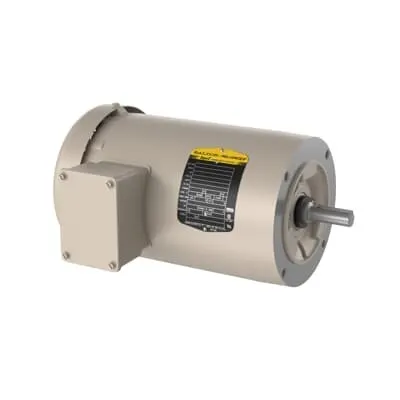

ABB VFDEM3546 Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BVFDEM3546
Quick Summary
Farm Duty Motor VFDEM3546 is a 1 HP, 230/460 V three-phase TEFC motor designed for rugged farm equipment and industrial conveyors. It delivers 1770 rpm at 60 Hz with a 56C frame and C-face mounting, simplifying retrofits and new installs. Buyers benefit from fast sourcing, with stock confirmed across multiple warehouses to minimize downtime. Certifications include CSA, CSA EEV, and UR recognition, paired with IE3 premium efficiency to reduce energy costs and heat. The Direct On Line starting and NEMA B design further align with common industrial standards, delivering reliability, straightforward maintenance, and a strong total cost of ownership for agricultural and manufacturing ventures.
Product Information
Extended Description
7BVFDEM3546 ABB: Farm Duty Motor 1 Hp 230 V (VFDEM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56C,3520M,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDEM3546
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE3763
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFDEM3546
Gross Volume
3496.049 inÂł
Gross Weight
37 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56C,3520M,TEFC,F1,N
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VFDEM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
37 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The VFDEM3546 uses a 1 HP, 230/460 V dual-voltage design with a TEFC enclosure and 56C frame, enabling easy compatibility across equipment and facilities. This combination delivers reliable performance with reduced energy waste (IE3), lowering operating costs in irrigation pumps and belt-driven conveyors. Application: Farm equipment and light industrial drives that require consistent torque and solid enclosure protection. The energy efficiency translates to cooler operation and longer motor life, supporting longer maintenance intervals and lower cooling requirements in barns, greenhouses, and processing lines. Feature → Business Impact → Application: C-face mounting and horizontal orientation simplify installation, alignment, and retrofits, reducing commissioning time and mount-fit risk. Application: Replacements and upgrades in existing lines where footprint and bolt patterns match, minimizing downtime during plant transitions. Feature → Business Impact → Application: Direct On Line starting and 60 Hz operation provide immediate torque at startup with minimal added components, improving startup reliability for pumps and fans. Application: Raw water pumps, climate-control fans, and material handling conveyors in farm and light industrial settings. Feature → Business Impact → Application: Stocked at multiple warehouses (US, GB, SG, CN), enabling rapid procurement and short lead times, which lowers inventory risk and expedites project schedules. Application: Global projects requiring quick sourcing, cross-border installs, and consistent supplier support. Feature → Business Impact → Application: Premium efficiency (IE3) reduces energy use by up to the rated 85.5%, cutting utility costs and aligning with sustainability targets. Application: Continuous operation in processing lines and irrigation systems where energy costs are a significant factor.
Get a Quick Quote for a ABB 7BVFDEM3546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFDEM3546?
Enquire Now
FAQs
The VFDEM3546 uses a C-face mounting and horizontal orientation with a 56C frame, designed for straightforward mounting on standard bases. It supports dual voltage (230/460 V) and Direct On Line starting, enabling quick integration into existing drives or new installations. Ensure alignment to the C-face flange and use compliant bolting patterns to avoid vibration or misalignment.
Key specs include 1 HP (output), 3-phase operation at 60 Hz, 1770 r/min nominal speed, and dual voltage 230/460 V. It features IE3 premium efficiency, insulation class F, and a TEFC enclosure. Rated current is 3.2 A (nominal) with a service factor of 1.15, suitable for continuous duty in agricultural environments.
Yes. The Farm Duty designation, 56C frame, C-face mounting, and 3-phase TEFC design make the VFDEM3546 ideal for pumps, conveyors, and other farm or light industrial applications. Its rugged construction and direct-on-line start support reliable starts in variable loads, while the 60 Hz spec ensures compatibility with standard power grids.
The VFDEM3546 carries CSA, CSA EEV, and UR recognitions, ensuring compliance with North American safety and electrical standards. These certifications help meet regulatory requirements for agricultural and industrial installations, simplify vendor qualification, and support safer operation in demanding environments.
IE3 premium efficiency reduces energy consumption and heat generation, contributing to lower operating costs and extended motor life. Maintenance considerations include standard TEFC enclosure care, bearing inspection (6205/6203 ball bearings), and regular lubrication per OEM guidelines. The motor’s availability across multiple warehouses also reduces downtime and total cost of ownership.
