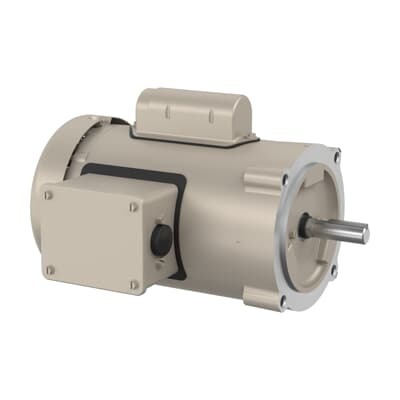

ABB 7BVFDL3501M Farm Duty Motor - 115 V TEFC
Part Number: 7BVFDL3501M
Quick Summary
Farm Duty motor is a compact, single-phase drive ideal for conveyors and pumps in light industrial and agricultural settings. Many users struggle with voltage mismatches, enclosure exposure, and downtime in remote locations. The ABB 7BVFDL3501M carries CSA and UR certifications, aligns with NEMA design standards, and is RoHS compliant, underscoring safety and reliability. With 1-phase operation, TEFC enclosure, and a 56C frame, it integrates smoothly with standard VFDs and service plans, delivering predictable uptime and ease of maintenance. This combination supports a quick installation, reduced spare-part inventory, and a clear path to compliant, energy-efficient operations across diverse equipment fleets.
Product Information
Extended Description
7BVFDL3501M ABB: Farm Duty Motor 0.33 Hp 115 V (VFDL3501M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1725RPM,1PH,60HZ,56C,3414L,TE
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3501M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM372
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3501M
Gross Volume
2110.969 inÂł
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
B
Invoice Description
.33HP,1725RPM,1PH,60HZ,56C,3414L,TEFC,F1
Made To Order
No
Medium Description
Farm Duty, 0.33 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VFDL3501M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
60 %
Product Name
Farm Duty
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
23 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
60 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.35
Service Factor Percentage
1.35 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
115 V | 230 V
Feature: 0.33 HP, 115/230 V, 60 Hz. Business Impact: Enables flexible voltage matching and straightforward wiring, reducing initial install cost while maintaining reliable torque and start-up. Application: Ideal for small pumps, fans, and conveyors in farm yards or light industrial lines. Feature: TEFC enclosure, 56C frame, 1-phase, 1725 r/min (Synchronous 1800 r/min). Business Impact: Durable protection against dust and moisture with standard mounting compatibility, lowering maintenance and replacement frequency. Application: Suitable for environments with limited enclosure access and routine wash-downs. Feature: Direct On Line starting, 60 min duty, service factor 1.35. Business Impact: Simple, robust start-up for continuous loads with a built-in headroom for brief overloads, improving system reliability. Application: Safe integration into belt-driven or centrifugal loads without external soft-start devices. Feature: RoHS compliance, NEMA design alignment, CSA/UR certifications. Business Impact: Regulatory peace of mind and safer procurement, reducing compliance risk and warranty concerns. Application: Fits regulated industries and global supply chains requiring traceable certifications. Feature: Stocked At Multiple Warehouses, 0 day Lead Time. Business Impact: Shorter lead times, lower risk of production downtime, and easier procurement planning. Application: Ideal for project bids, repair shops, and OEM stocking strategies with global reach.
Get a Quick Quote for a ABB 7BVFDL3501M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFDL3501M?
Enquire Now
FAQs
Yes, the 7BVFDL3501M is designed for seamless VFD compatibility thanks to its 1-phase input, 115/230 V rating, and TEFC enclosure. It uses a 56C frame with C-face mounting and Horizontal/F1 orientation, making it straightforward to integrate with common drive systems and existing basements or wall mounts. For best results, pair with a compatible VFD that supports single-phase input and monitor current surges to maintain smooth operation and prevent nuisance tripping.
Key specs include 0.33 HP output, 115/230 V, 60 Hz, 1725 r/min, and a 1.35 service factor. It operates as a 1-phase motor with a direct-on-line starting method and a continuous duty profile. Rated current is around 6 A, with RoHS compliance and NEMA design alignment. Plan for a TEFC enclosure to withstand dusty or moisture-prone environments and confirm compatible wiring and circuit protection accordingly.
Yes. The motor is specified for continuous duty with a 60-minute duty time and a 1.35 service factor, making it suitable for ongoing operation in pumps, fans, or light conveyors common in agricultural and farm-related equipment. Its robust steel frame, TEFC enclosure, and 56C frame support reliable performance under typical field-load conditions and intermittent overloads without compromising longevity.
The 7BVFDL3501M carries CSA and UR certifications, aligns with NEMA design standards, and is RoHS compliant. This combination reduces compliance risk, eases cross-border procurement, and ensures safer electrical integration with standard controls. Projects in regulated industries or those requiring traceable certifications will benefit from documented conformity and reliable supplier quality.
With 0 day lead time stock at multiple warehouses, straightforward mounting (C-face, horizontal/F1), and a compact footprint, installation is faster and less costly. The TEFC enclosure, rugged frame, and durable steel construction cut maintenance and replacement costs, while compliance and broad availability improve total cost of ownership over the motor’s life cycle.
