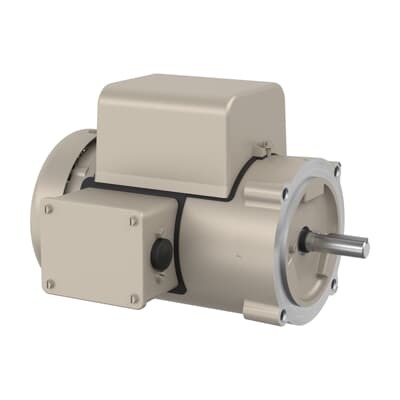

ABB VFDL3507M Farm Duty Motor - CSA/UR Certified
Part Number: 7BVFDL3507M
Quick Summary
ABB VFDL3507M Farm Duty Motor delivers 0.75 HP for single-phase farm equipment. Operators face variable loads and startup surges in agricultural settings; this motor is designed for reliable startup, steady torque, and long service life under harsh conditions. With CSA and UR certifications and RoHS compliance, it meets electrical safety and environmental standards, while the NEMA design N classification guides robust, repeatable performance in demanding applications. Designed for standard 56C frame footprints with C-face mounting, it enables easy retrofits and scalable OEM integration, while stock availability at multiple warehouses supports fast project timelines and reduced downtime.
Product Information
Extended Description
7BVFDL3507M ABB: Farm Duty Motor 0.75 Hp 115 V (VFDL3507M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1725RPM,1PH,60HZ,56C,3432LC,T
Ambient Temperature
40 °C
Bearing
6203 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3507M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
34LYM370
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3507M
Gross Volume
3496.049 inÂł
Gross Weight
44 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
B
Invoice Description
.75HP,1725RPM,1PH,60HZ,56C,3432LC,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VFDL3507M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
75 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
44 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.8 A | 4.4 A
Rated Efficiency
74 %
Rated Speed
1725 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
115 V | 230 V
The motor delivers 0.75 HP in a compact, single-phase 115/230 V, 60 Hz package, ensuring compatibility with typical farm power supplies and enabling predictable startup torque for light-to-moderate loads such as conveyors, fans, and pumps. This translates to reduced electrical strain and easier integration into existing control panels. The TEFC enclosure, 56C frame, and C-face mounting provide rugged protection and straightforward installation in dusty, humid agricultural environments, improving uptime and simplifying retrofits or OEM deployments. With NEMA Design Code N and insulation Class B, the motor sustains reliable performance under elevated ambient temperatures up to 40 °C and variable loads, meeting regulatory expectations and supporting long service life. Rated current of 8.8 A / 4.4 A and a 1.25 service factor further enhance reliability, enabling safer panel sizing and improved operating margins in farm automation applications. Stocked in multiple warehouses (US, China) and RoHS compliant, CSA/UR certified, this motor minimizes downtime and supports fast procurement, OEM scalability, and cost-effective maintenance for agricultural equipment fleets.
Get a Quick Quote for a ABB 7BVFDL3507M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVFDL3507M?
Enquire Now
FAQs
This is a single-phase motor designed for 115 V and 230 V operation at 60 Hz, delivering 0.75 HP. The dual voltage capability supports common farm power distributions and compact control panels, with 1725 rpm for balanced torque on light-to-moderate loads such as conveyors, fans, and pumps.
Yes. It uses a 56C frame with TEFC enclosure and C-face mounting, providing rugged protection in dusty and humid agricultural environments. Its 1725 rpm speed and 0.75 HP output make it ideal for OEM integrations and quick retrofit into existing farm lines, minimizing conversion work and downtime.
The VFDL3507M carries CSA and UR certifications and RoHS compliance, with a NEMA design code N. These certifications support regulatory approvals in US facilities, reduce risk for integrators, and align with contemporary sustainability and safety requirements for farm automation projects.
The motor features a TEFC enclosure, C-face mounting, and a 56C frame with a footless base option. These characteristics enable straightforward bolt-on installation into standard equipment and control panels, simplify alignment, and reduce the time and cost of commissioning in field installations.
Benefit areas include a robust TEFC design, a service factor of 1.25, and the ability for direct-on-line starting, which lowers startup stress and reduces downtime. Coupled with CSA/UR and RoHS compliance and multi-warehouse stocking, it supports predictable lifecycle costs, faster procurement, and improved return on investment for farm automation projects.
