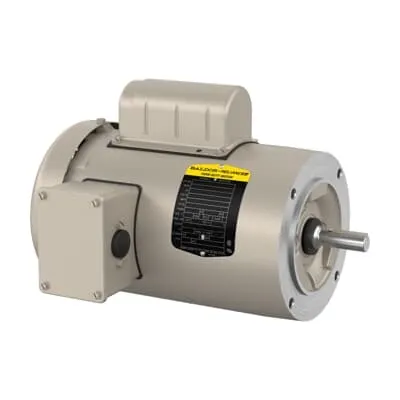

ABB 7BVFDL3510M Farm Duty Motor - CSA UR Certification
Part Number: 7BVFDL3510M
Quick Summary
Farm Duty motor is a reliable 1 HP drive for agricultural equipment. It supports 60 Hz single-phase operation and is well suited for farming, grain handling, and processing lines. This ABB model addresses common pain points like weather exposure, load variability, and long lead times by offering a rugged TEFC enclosure and immediate availability. It carries CSA and UR certifications and aligns with NEMA standards, reinforcing durable farm-duty performance. With a 56C frame, 115/230 V operation, and C-face mounting, this motor delivers the reliability and installation flexibility that industrial farms and feed mills require to minimize downtime and optimize total cost of ownership.
Product Information
Extended Description
7BVFDL3510M ABB: Farm Duty Motor 1 Hp 115 V (VFDL3510M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1740RPM,1PH,60HZ,56C,3524L,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3510M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2335
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3510M
Gross Volume
3496.049 in³
Gross Weight
40 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1HP,1740RPM,1PH,60HZ,56C,3524L,TEFC,F1,N
Made To Order
No
Medium Description
Farm Duty, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VFDL3510M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
73 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
40 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13 A | 6.5 A
Rated Efficiency
67 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The ABB 7BVFDL3510M comes as a 1 HP, single-phase motor rated for 115/230 V at 60 Hz, with a 56C frame and TEFC enclosure. The impact is straightforward: universal compatibility and robust protection against harsh farm environments, reducing maintenance costs and unplanned downtime in barns and processing lines. Application: ideal for farm equipment, grain conveyors, and hopper feeders where predictable startup and durable operation are essential. Feature → Business Impact → Application: The TEFC enclosure provides weather resistance and mechanical protection, lowering corrosion risk in moisture-prone areas and enabling longer service intervals. Application: outdoor equipment, including silos and feed mills, where reliability matters most. Feature → Business Impact → Application: The 1.15 service factor and rated speed of 1725 r/min support moderate-load duty with margin, delivering improved response to variable loads and energy efficiency in continuous farm operations. Application: fans, pumps, and small conveyors. Feature → Business Impact → Application: C-Face mounting and horizontal orientation simplify installation, reducing commissioning time and enabling straightforward retrofits into existing frames. Application: renovations, upgrades, or spare-part substitutions in dairy, poultry, and horticulture lines. Feature → Business Impact → Application: Stocked across multiple warehouses (US and China) plus zero-day lead times reduce shipping delays and inventory carrying costs. Application: rapid deployment for urgent farm projects. This combination of rugged design, easy installation, and ready availability supports measurable outcomes like uptime improvement, lower total cost of ownership, and faster time-to-value for farm automation projects.
