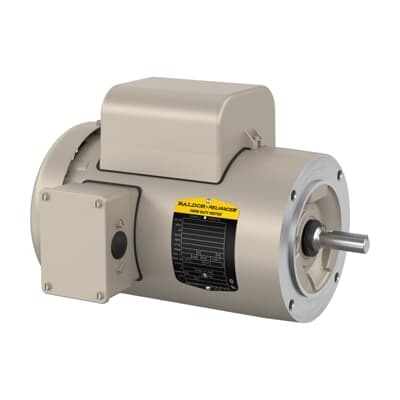

ABB 7BVFDL3514M Farm Duty Motor - CSA/UR Certified
Part Number: 7BVFDL3514M
Quick Summary
ABB 7BVFDL3514M Farm Duty Motor is a compact, single-phase drive delivering 1.5 HP at 115 V for farm equipment and light industrial fans and pumps. It addresses downtime and compatibility challenges common in field installations by offering a versatile voltage range (115/208-230 V) and a straightforward Direct On Line start. The unit carries CSA | UR certification and conforms to NEMA design standards, with a TEFC enclosure and 40 °C ambient tolerance. This combination reduces wiring surprises and procurement complexity, while enabling faster commissioning and predictable maintenance in rugged environments. Designed for applications from agricultural conveyors to irrigation pumps, it lowers total cost of ownership over many seasons.
Product Information
Extended Description
7BVFDL3514M ABB: Farm Duty Motor 1.5 Hp 115 V (VFDL3514M)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1750RPM,1PH,60HZ,56C,3532LC,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3514M
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2333
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3514M
Gross Volume
3496.049 in³
Gross Weight
48 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
1.5HP,1750RPM,1PH,60HZ,56C,3532LC,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (VFDL3514M)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
96 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.8 A | 6.2 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
115 V | 208 V | 230 V
Feature: The motor supports 115 V and 208-230 V operation as a single-phase design at 60 Hz. Business Impact: simplifies regional procurement and reduces spare-parts inventory for multinational operations. Application: ideal for farm equipment, pumps, and fans in mixed-use facilities. Feature: TEFC enclosure with 40 °C ambient tolerance. Business Impact: provides rugged protection against dust, moisture, and outdoor conditions, reducing enclosure maintenance and downtime. Application: barns, greenhouses, and outdoor cooling fans. Feature: 56C frame with C-face mounting and horizontal orientation. Business Impact: standard footprint compatibility and easy retrofit with common adapters, lowering installation time and alignment risk. Application: retrofits and upgrades in conveyors and gear-driven systems. Feature: NEMA design code L and CSA | UR certification. Business Impact: regulatory alignment and supplier confidence across regions, easing compliance and audits. Application: regulated environments and multi-site deployments. Feature: Direct On Line starting with 1-phase operation. Business Impact: simple motor control reduces initial equipment cost and control panel complexity. Application: field installations where fast commissioning and minimal downtime matter. Feature: 1.5 HP rating with 1725 r/min nominal speed (56C, TEFC). Business Impact: predictable torque and performance for pumps and fans, reducing over-design and energy waste. Application: agricultural pumps, irrigation systems, and ventilation.
