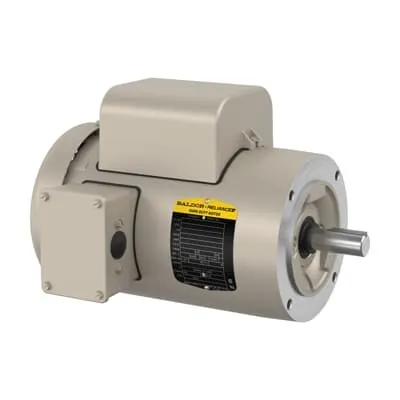

ABB 7BVFDL3516TM Farm Duty Motor - 1PH 60Hz TEFC
Part Number: 7BVFDL3516TM
Quick Summary
ABB 7BVFDL3516TM is a farm-duty motor designed for reliable, single-phase drive applications in agricultural and light-industrial settings. Engineers often struggle with startup torque, energy costs, and maintenance in remote barns or processing lines, and this motor addresses those pain points with robust construction and efficient performance. With CSA and UR listings and a NEMA design code L configuration, it provides regulatory confidence and standard-driven interchangeability across ABB/Baldor components. Its 2 HP rating, TEFC enclosure, and 145TC frame deliver dependable operation, while 60 Hz compatibility aligns with common industrial power systems and reduces integration risk. This combination supports faster deployment, lower total cost of ownership, and easier spare-part planning for commercial operations.
Product Information
Extended Description
7BVFDL3516TM ABB: Farm Duty Motor 2 Hp 230 V (VFDL3516TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1740RPM,1PH,60HZ,145TC,3534LC,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3516TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2328
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3516TM
Gross Volume
3496.049 inÂł
Gross Weight
53 lb
Horsepower Rating UL/CSA
2.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
2HP,1740RPM,1PH,60HZ,145TC,3534LC,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 2 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (VFDL3516TM)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
145TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
99 %
Product Name
Farm Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
53 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.9 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: 2 HP output at 1740 rpm on a 230 V, 1-phase supply. Business Impact: Direct-on-line starting delivers immediate torque, minimizing startup delays and reducing motor wear in intermittent-load equipment. Application: Ideal for farm pumps, grain conveyors, and small fans in agriculture and light manufacturing. Feature: TEFC enclosure, 145TC frame, C-face mounting. Business Impact: Robust protection against dust and grime with flexible mounting options, simplifying retrofit and service access. Application: Suitable for dusty barns, silos, and outdoor equipment where reliability matters. Feature: 60 Hz operation with a service factor of 1.15 and rated current 7.9 A. Business Impact: Stable performance under overload conditions, improved electrical efficiency, and predictable energy budgets. Application: Continuous-duty drives for irrigation pumps and automatic feeders. Feature: CSA/UR certification and NEMA design code L. Business Impact: Regulatory compliance and easy spare-parts interchangeability across North American fleets. Application: Industries requiring safety and standards conformance, including food processing and farming equipment. Feature: Footless base, horizontal mounting, Direct On Line starting. Business Impact: Flexible installation in tight spaces and simple electrical hookups, reducing installation time and cost. Application: Retrofit projects and new farm installations with limited space. Feature: Weight 53 lb, insulation class F, power factor 99%. Business Impact: Manageable handling during installation and reduced energy losses during operation. Application: Belt-driven systems, fans, and small conveyors in farm and industrial contexts.
