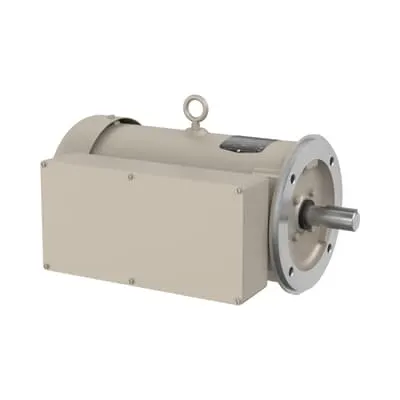

ABB 7BVFDL3612TM Farm Duty Motor - 1PH 60Hz TEFC CSA/UR
Part Number: 7BVFDL3612TM
Quick Summary
ABB 7BVFDL3612TM Farm Duty Motor powers 5 HP, 230 V equipment in farm automation applications. When uptime matters, this motor minimizes maintenance and downtime with a rugged TEFC enclosure and a durable steel frame. It carries CSA and UR certifications, along with a NEMA Design Code L rating, ensuring reliable performance in demanding agricultural environments. The 184TC frame supports compact installations and straightforward replacement in existing fleets, while 1-ph operation at 60 Hz delivers predictable performance. For manufacturers and integrators, this motor offers improved energy reliability, easier sourcing, and a clear return on investment in farm-to-table and irrigation systems.
Product Information
Extended Description
7BVFDL3612TM ABB: Farm Duty Motor 5 Hp 230 V (VFDL3612TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,184TC,3646LC,T
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFDL3612TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYQ158
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
VFDL3612TM
Gross Volume
7192.91 in³
Gross Weight
101 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,184TC,3646LC,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 5 HP, 1800 RPM, Frame Size 184Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (VFDL3612TM)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
184TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
88 %
Product Name
Farm Duty
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
101 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V
Feature: Rugged TEFC enclosure and steel frame (184TC) protection against dust, moisture, and mechanical shock. Business Impact: Extends service life and reduces frequent maintenance in dusty barns and outdoor installations. Application: Ideal for irrigation pumps, conveyors, fans, and other farm-automation equipment. Feature: 5 HP, 230 V, 1PH, 60 Hz with 1725 rpm (3.0–4.0 market range dependent on load). Business Impact: Delivers sufficient torque for small-to-mid-sized loads while maintaining reasonable starting current. Application: Fits compact farm drives and line-start configurations in greenhouses and processing lines. Feature: 184TC frame, C-Face mounting, shaft diameter 1.13 in. Business Impact: Facilitates quick retrofit and straightforward alignment with standard drive-end flanges. Application: Enables seamless replacement in legacy Baldor-Reliance setups and OEM assemblies. Feature: Continuous duty with 60 Min duty time and 1-phase operation. Business Impact: Supports reliable continuous operation with controlled thermal loading, reducing overheating risk. Application: Agriculture conveyors, pumps, and ventilation systems with predictable cycles. Feature: Certifications and standards (CSA | UR, NEMA Design Code L, Insulation Class F). Business Impact: Compliance with industrial codes and improved supplier qualification for regulated facilities. Application: Suitable for USDA-grade equipment, processing lines, and OEM integrations requiring robust documentation. Feature: Availability and sourcing (Stocked at multiple warehouses; Lead Time 0 day). Business Impact: Enables rapid deployment, minimal downtime for spares, and faster project timelines. Application: OEMs and integrators planning downtime-sensitive installations in farming operations.
