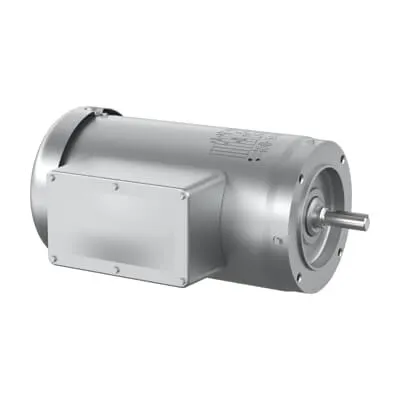

ABB 7BVFSWDL3509 Washdown Motor - CSA UR, 56C TEFC
Part Number: 7BVFSWDL3509
Quick Summary
The ABB 7BVFSWDL3509 washdown motor provides 1 HP power for sanitary food processing lines. In high‑pressure washdown environments, uptime and hygiene compliance are critical challenges. It carries CSA and UR safety certifications and adheres to NEMA design standards, helping facilities meet regulatory requirements with confidence. Built with a stainless steel frame and TEFC enclosure, this 1‑phase motor resists corrosion and simplifies cleaning, while operating at 60 Hz and 115/230 V to fit common plant power distributions. The design supports reliable performance in conveyors and processing equipment, delivering predictable speed and torque, reducing downtime, and lowering lifecycle costs through robust components and straightforward maintenance.
Product Information
Extended Description
7BVFSWDL3509 ABB: Washdown Motor 1 Hp 115 V (VFSWDL3509)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56C,3524L,TEFC
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VFSWDL3509
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE4628
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VFSWDL3509
Gross Volume
3496.049 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1HP,3450RPM,1PH,60HZ,56C,3524L,TEFC,F1,N
Made To Order
No
Medium Description
Food Safe Washdown, 1 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VFSWDL3509)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
80 %
Product Name
Food Safe Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.6 A | 5.8 A
Rated Efficiency
68 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
1 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: TEFC enclosure and stainless steel frame provide superior corrosion resistance in washdown environments. Business Impact: Reduces maintenance frequency and simplifies sanitization, extending motor life in sanitary applications. Application: Food processing lines and beverage packaging where hygiene is essential. Feature: 1 HP, single‑phase 115/230 V operation at 60 Hz. Business Impact: Versatile power compatibility with standard plant electrical systems, enabling direct integration and lower installation costs. Application: Conveyors and processing equipment with limited three‑phase availability. Feature: 56C frame with C‑Face drive end flange and horizontal mounting. Business Impact: Compact, flexible mounting options that simplify retrofits and new installations in tight spaces. Application: Sanitary conveyors and robotic integration in hygienic environments. Feature: TEFC enclosure and 40 °C ambient capability with sealed bearings. Business Impact: Enhanced reliability in damp, dusty, or washdown plants; reduced bearing maintenance and longer service intervals. Application: Food and beverage lines requiring robust enclosure protection. Feature: CSA and UR certifications with NEMA alignment. Business Impact: Compliance assurance reduces risk in regulated industries and eases supplier qualification. Application: Industrial facilities pursuing certified equipment for regulated sanitary processes. Feature: 2-pole, 3450 r/min rated speed with 1.25 service factor and 0.63 in shaft. Business Impact: Consistent torque delivery and margin for start‑up surges; supports steady line speeds. Application: High‑demand conveyors and packaging systems in continuous duty regimes. Industry context and real‑world note: the machine is designed for food‑safe washdown applications and aligns with common plant practices, including direct‑on‑line starting and horizontal mounting, enabling straightforward installation and predictable lifecycle costs for manufacturers.
